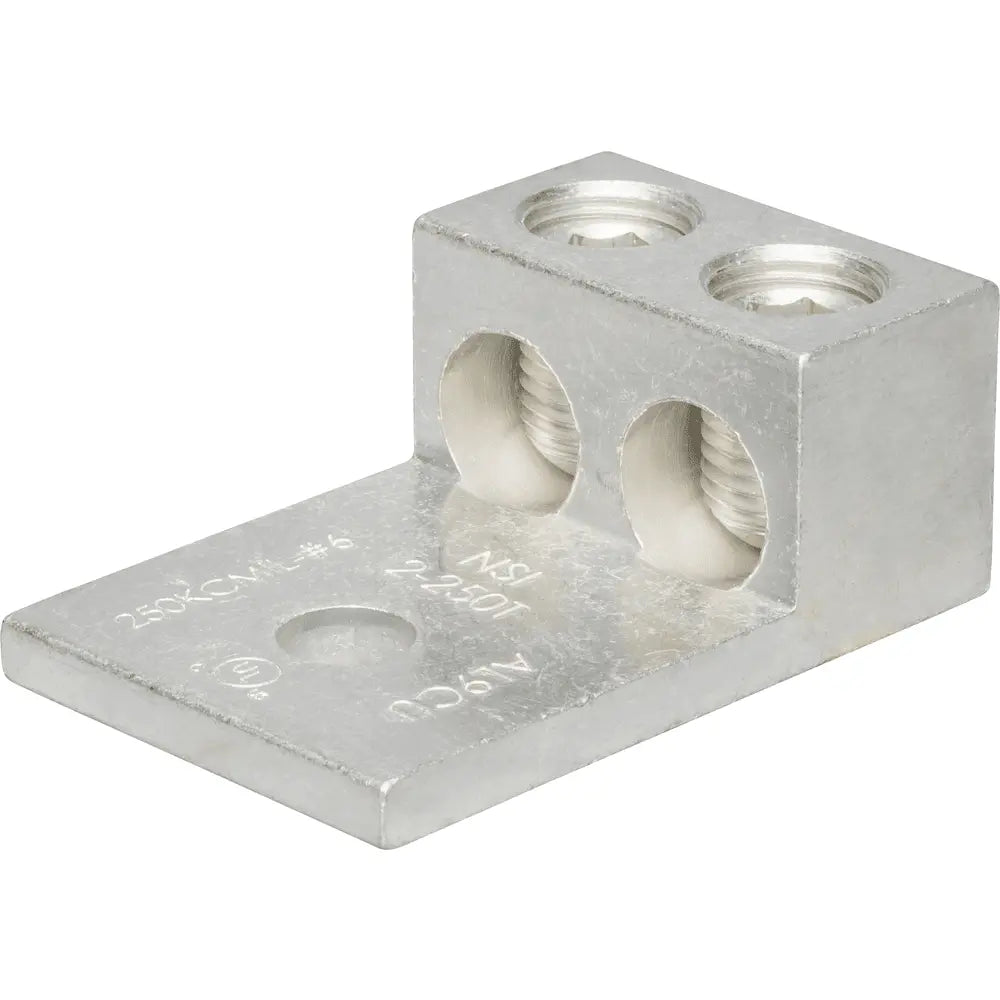

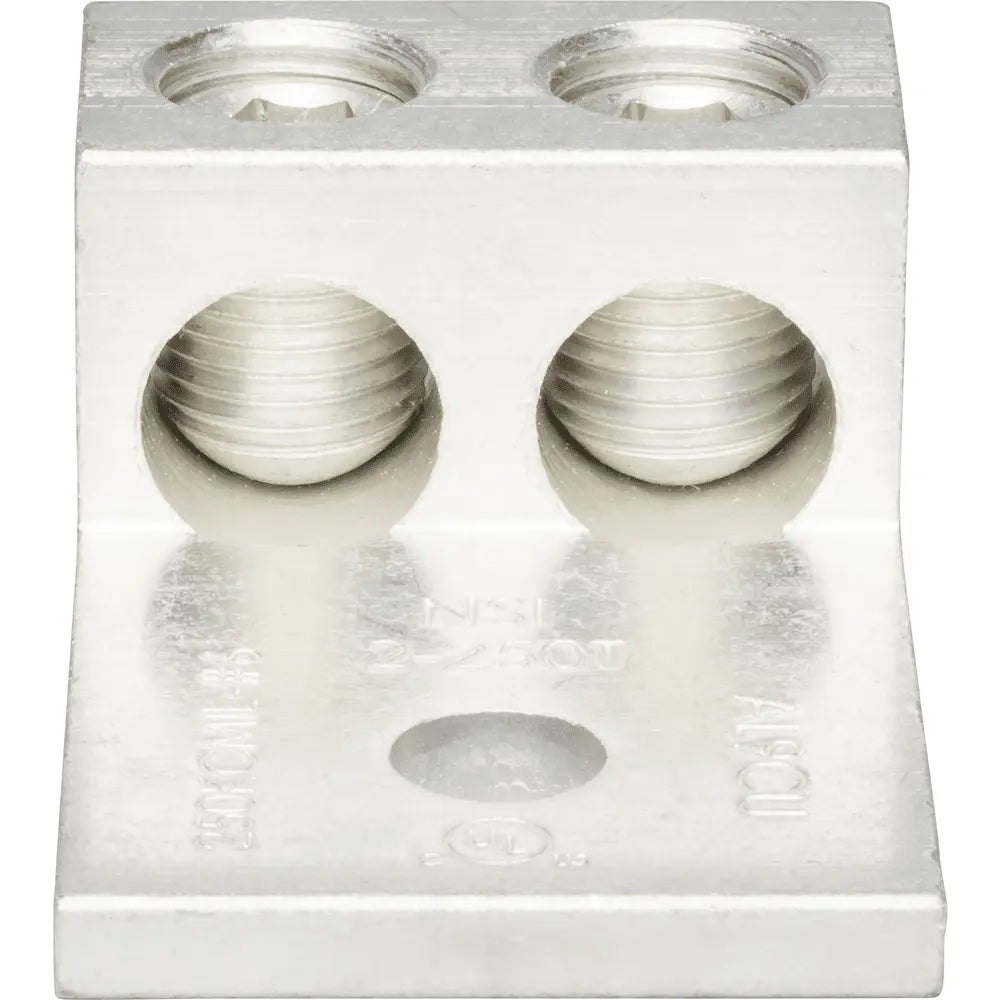

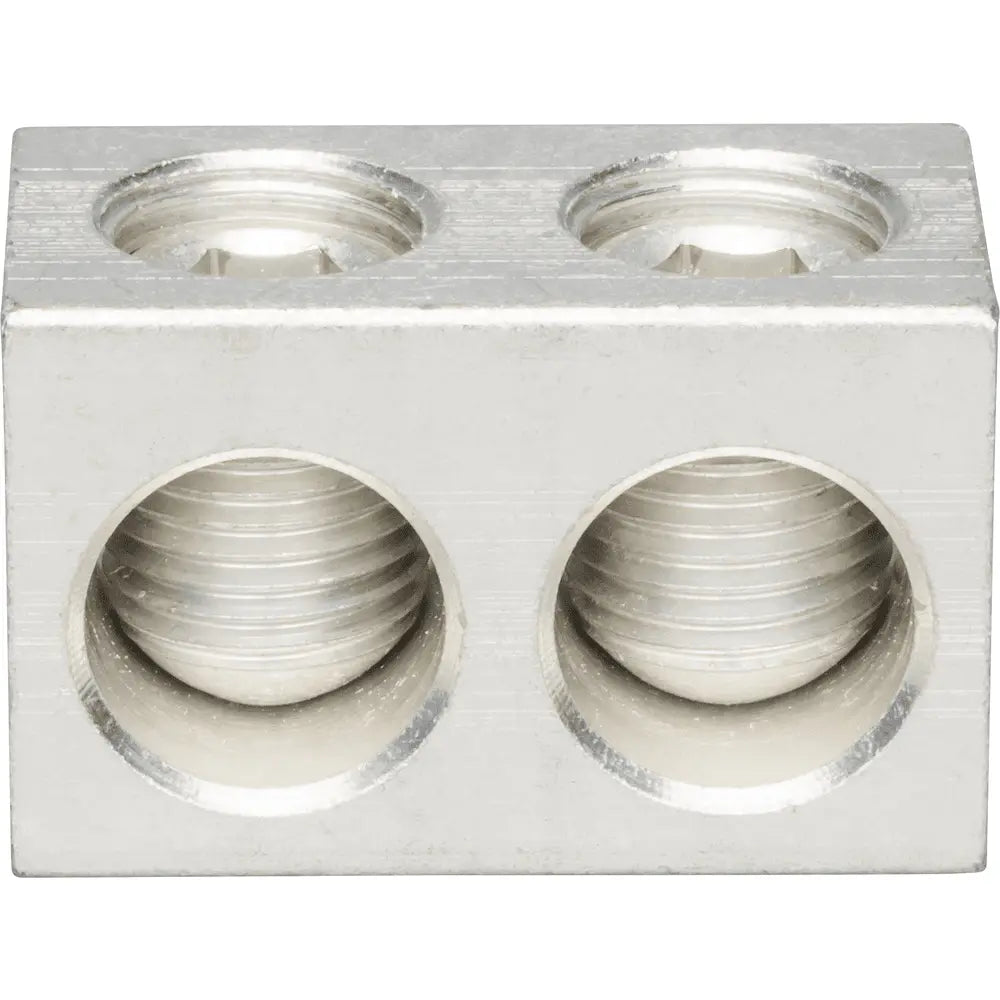

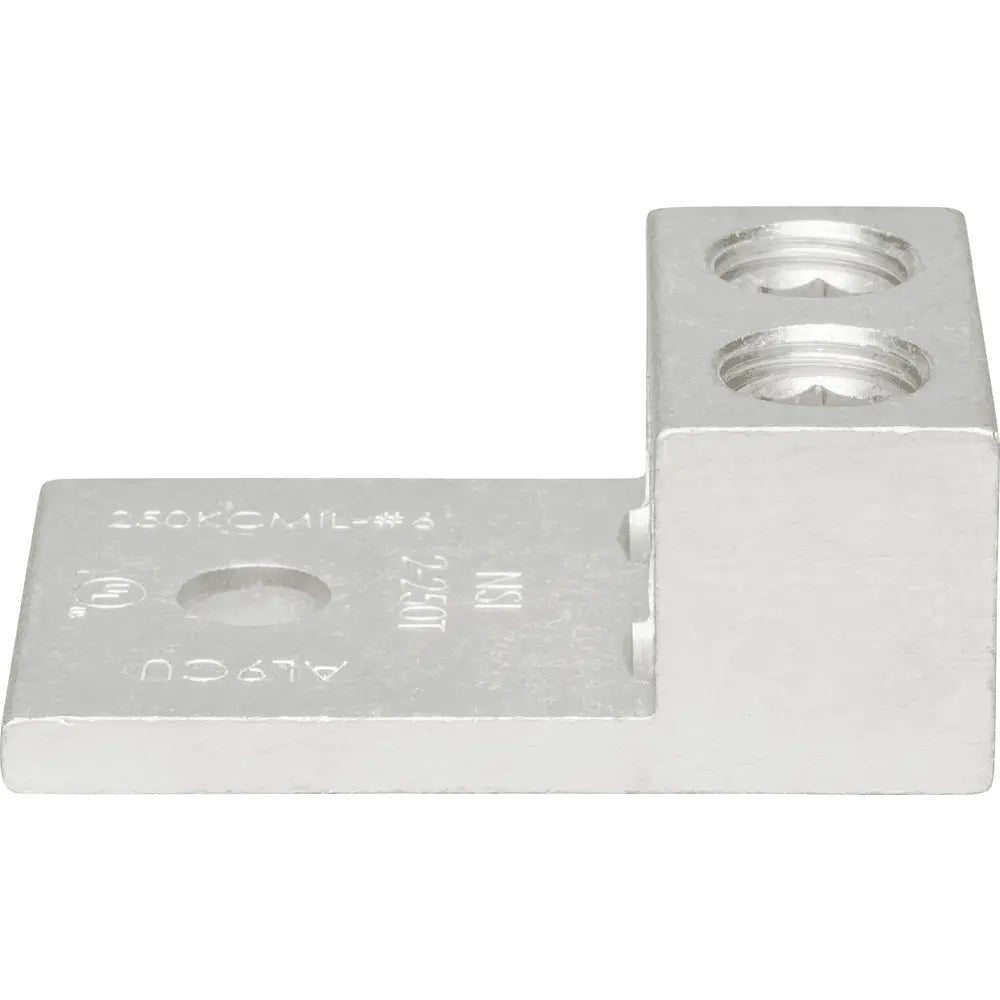

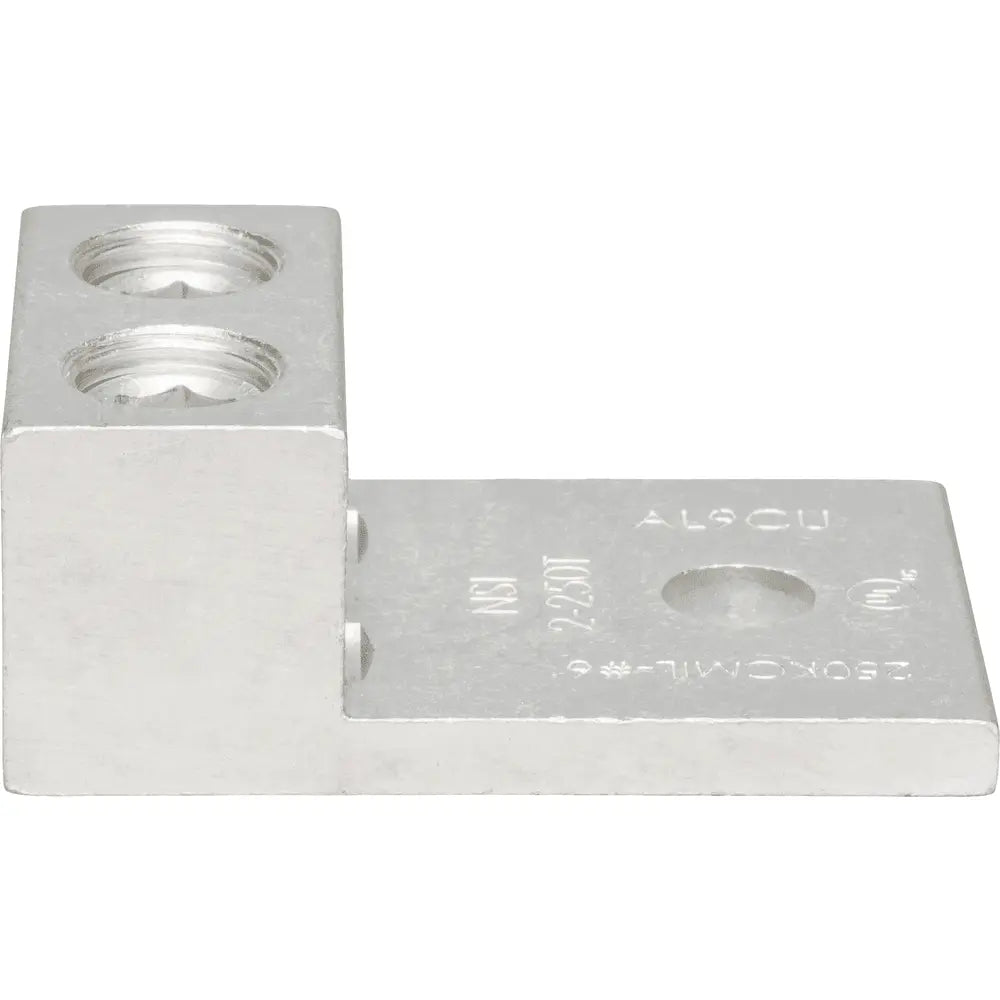

NSI 2-250T Dual Rated Lug, 6 AWG to 250 MCM

Product Description

The NSI 2-250T is a dual rated aluminum lug designed for wire connection. This product is suitable for both copper and aluminum conductors, accommodating sizes from six AWG up to two hundred fifty kcmil. It is made from 6061T-6 aluminum alloy, ensuring durability and reliability in various electrical applications.

• Rated for 600 volts and can handle temperatures up to ninety degrees Celsius.
• Features a mechanical connection type for reliable performance.
• UL 486A/B Listed for safety and compliance.

Product Highlights

This lug is ideal for electrical professionals. It offers versatility and reuse through its set screw design. The electro-tin plating reduces contact resistance, enhancing performance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 2-250T

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Conductor Range: 6 AWG to 250 MCM
• Stud Size: 3/8 inches
• Installation Torque: 330 lb-inch
• Dimensions: 2.56 inches length x 1.63 inches width x 1.02 inches height
• Temperature Rating: 90 degrees Celsius
• Number of Bolt Holes: 1
• Finish: Electro-Tin Plated
• Country of Origin: United States
