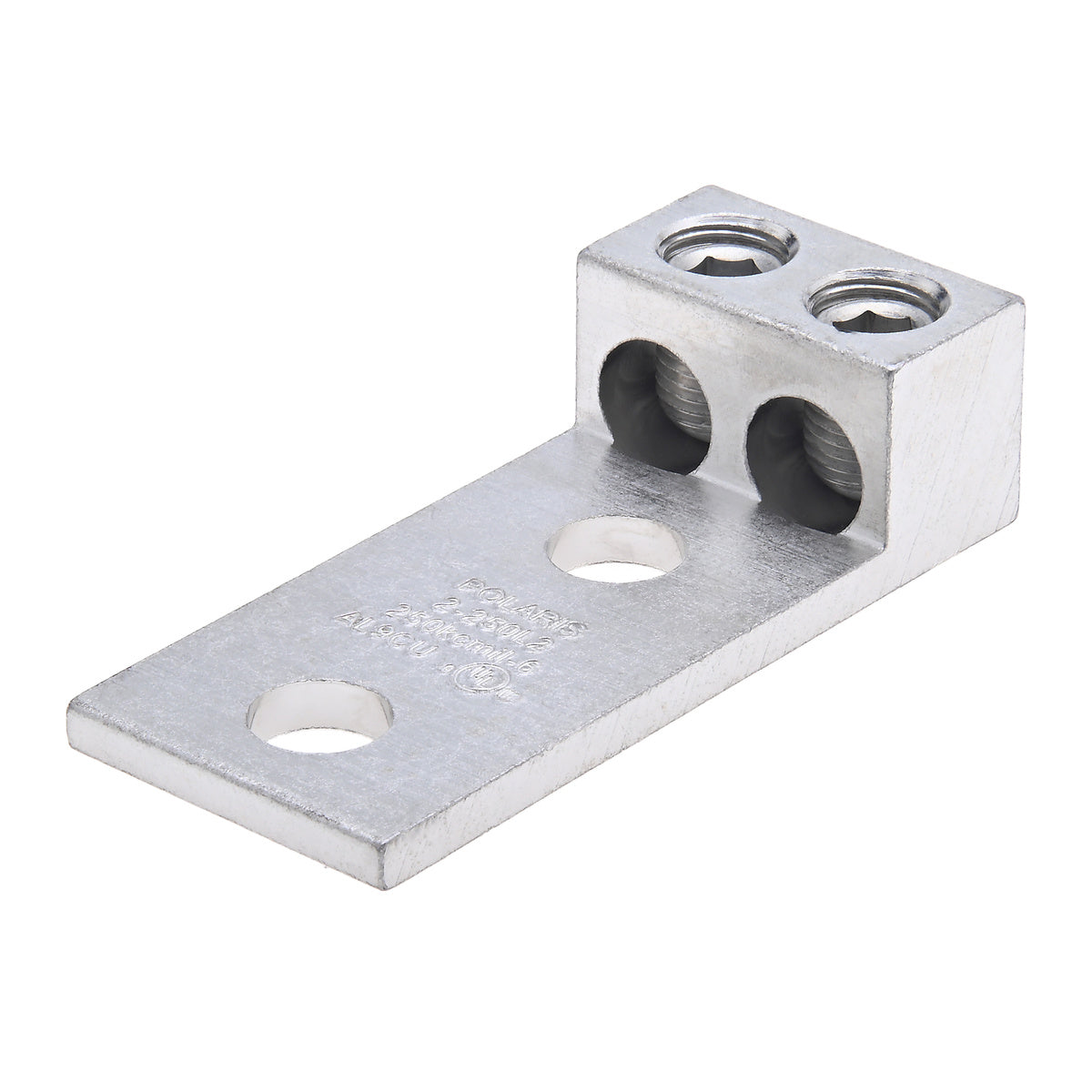

Nsi 2-250l2 nema panelboard lug 250 mcm - 6 awg

Product Description

The NSI 2-250L2 is a Nema Panelboard Lug that accommodates 250 MCM to 6 AWG conductors. It features NEMA mounting hole spacing for secureness and is made of 6061T-6 aluminum alloy with electro-tin plating for low contact resistance. Suitable for use with copper or aluminum conductors.

• Panelboard style for multi-conductor
• NEMA mounting hole spacing for turn-prevent and secureness
• Made of 6061T-6 aluminum alloy

Product Highlights

This NSI panelboard lug ensures secure and reliable connections for a range of conductor sizes in panelboard applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 2-250L2
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600 V
• Material: 6061T-6 Aluminum Alloy
• Finish: Tin Plated
• Pack Qty: 6
• Ul Standard: UL 486A-486B
• Conductor Type: Aluminum, Copper
• Tang Length: 3.01
• Hole Spacing: 1.75
• Wire Range: 250 MCM ">– 6 AWG
• Brand: NSI
• MPN: 2-250L2
• Condition: New
• Country of Origin: United States
• Type: Panelboard Lug
• Bolt/Stud Size: 1/2 in
• Conductor Range: 6 AWG to 250 kcmil
• Number of Ports: 2
• Electrical Ratings: 600 VAC
• Hex Size: 5/16 in
• Height: 1.02 in
• Suitable For Use With: Copper and Aluminum Conductors
• Width: 1.69 in
• Dual Rated: Dual Rated
• Length: 3.88 in
• Series: L Series
