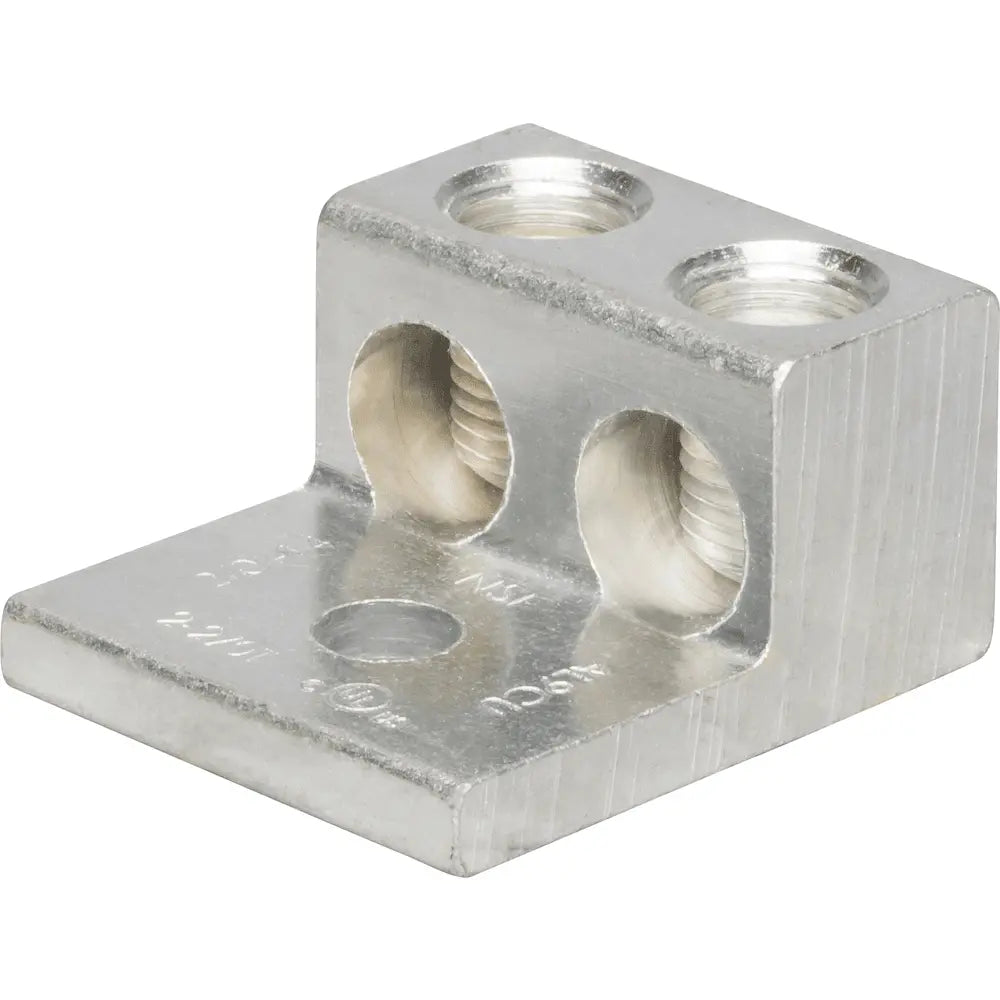

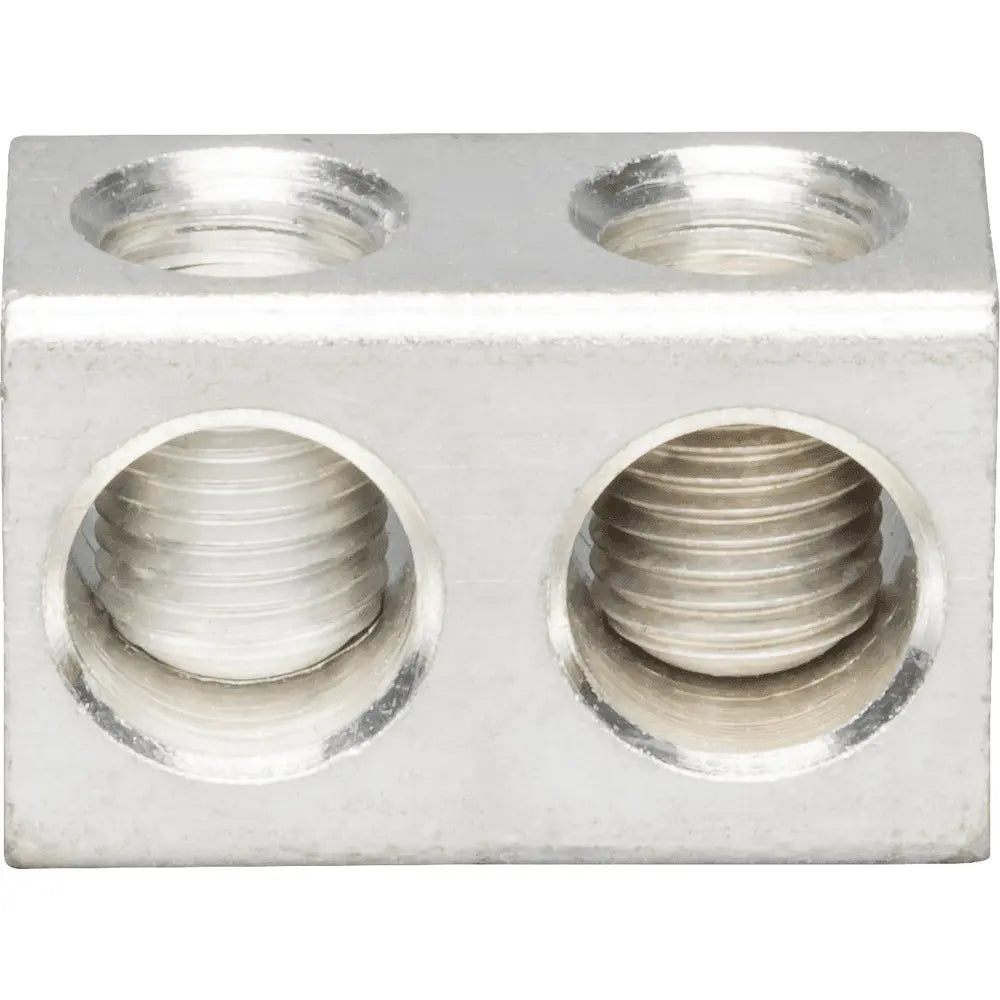

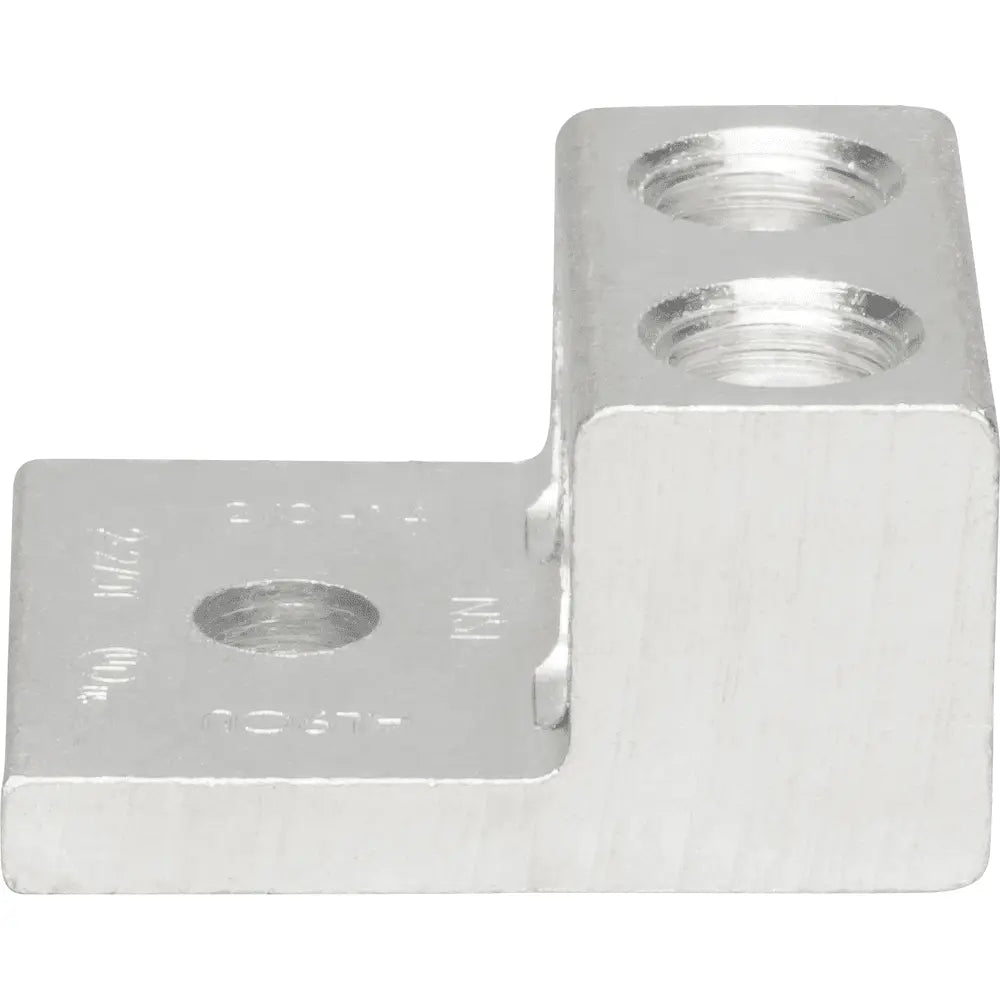

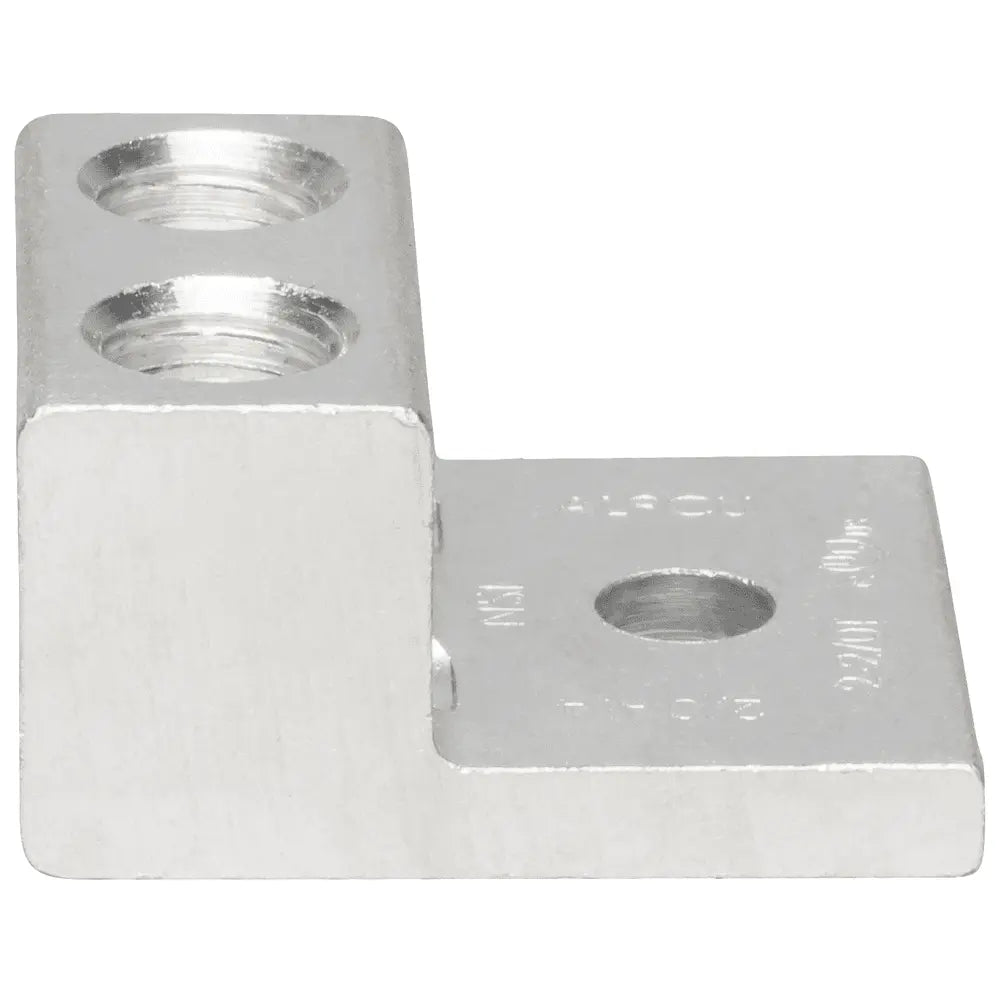

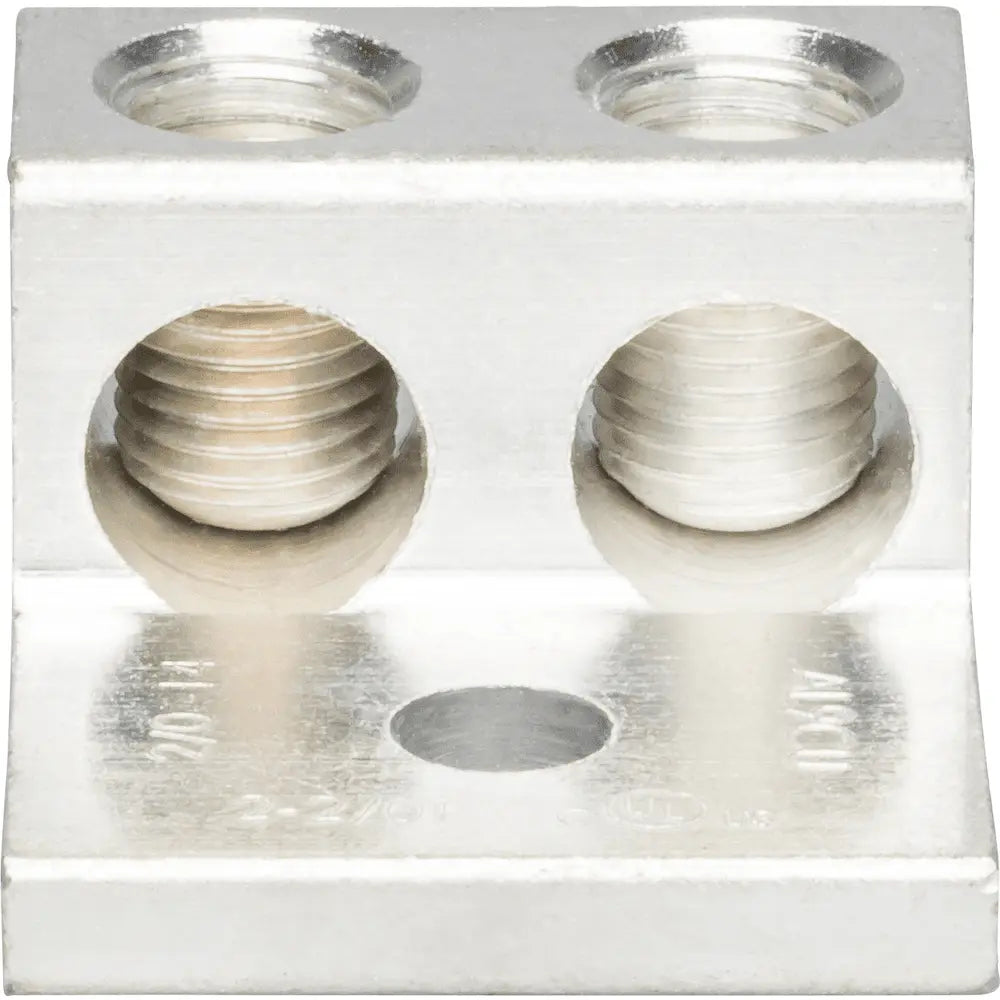

NSI 2-2/0T Dual Rated Two-Port Lug, 14 AWG to 2/0

Product Description

The NSI Dual Rated Two-Port Lug, MPN 2-2/0T, is designed for 14 AWG to 2/0 aluminum and copper conductors. This lug is suitable for various applications, providing strong and reliable connections, essential in electrical installations.

• Versatile and reusable set-screw connectors made from aluminum alloy.
• Electro-tin plated to reduce contact resistance.
• Rated for up to 600 volts and temperatures up to 90 degrees Celsius.

Product Highlights

The 2-2/0T dual rated lug is an ideal choice for professionals looking for reliable wiring connections in both copper and aluminum applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
• Dimensions: 1.47 inches length x 1.25 inches width x 0.79 inches height
• Conductor Range: 14 AWG to 2/0
• Stud Size: 1/4 inch
• Number of Mounting Holes: 1
• Installation Torque: 120 in-lb
