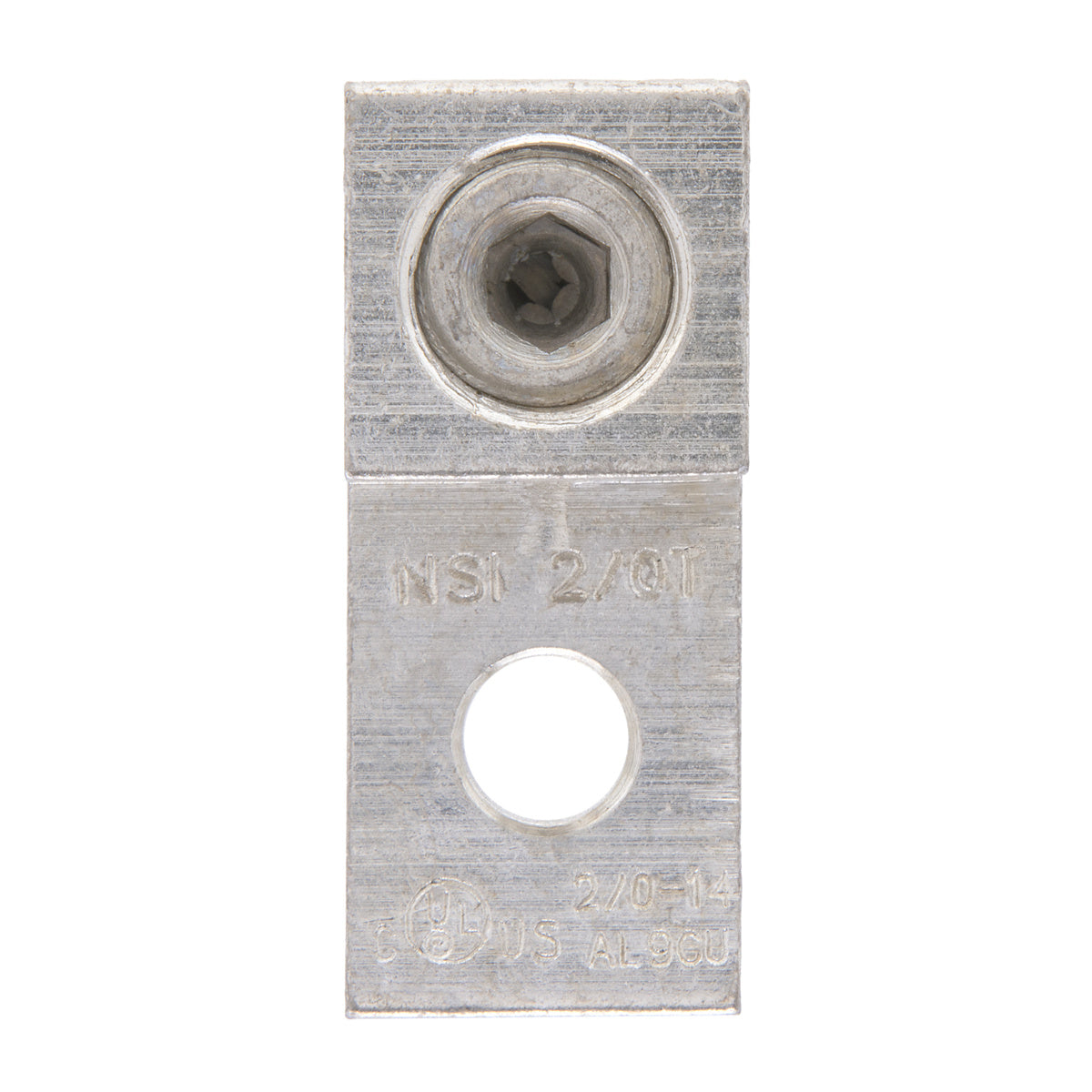

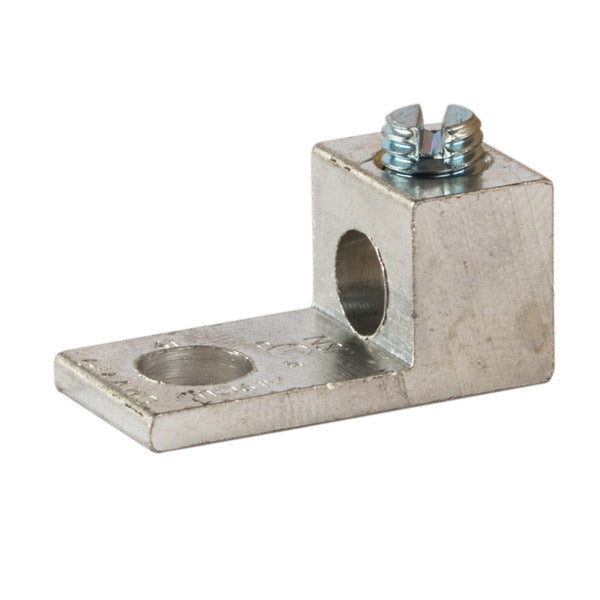

Nsi 2/0T Dual Rated Lug, 14 to 2/0 Awg, 1/4 in Stud

Product Description

The NSI 2/0T is a dual-rated lug designed for versatile use. It accommodates conductors ranging from 14 to 2/0 AWG and features a 1/4 inch stud. Constructed from 6061T-6 aluminum alloy and electro-tin plated, this lug ensures low contact resistance and reliable performance in various electrical applications.

• Versatile and reusable set screw connectors made of 6061T-6 aluminum alloy
• Electro tin plated for low contact resistance
• 0.44 in hole center to tang end size

Product Highlights

Dual-rated lug made from 6061T-6 aluminum alloy with electro-tin plating, suitable for 14 to 2/0 AWG conductors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 2/0T

Technical Specifications

• Finish: Electro-Tin Plated
• Series: T Series
• Temperature Rating: 90 deg C
• Tongue Size: 0.85 in W x 0.19 in THK
• Tongue Type: Straight
• Type: Dual Rated Universal
• Voltage Rating: 600 VAC
• Conductor Size: 14 to 2/0 AWG
• Stud Size: 1/4 in
• Number of Bolt Holes: 1
• Material: Aluminum
• Wire Range: 2/0 AWG – 14 AWG
• Conductor Type: Aluminum, Copper
