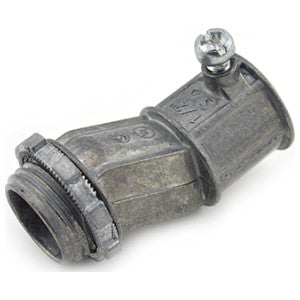

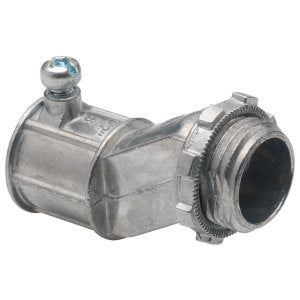

Nsi 1620-DC2 nipple connector set screw offset zinc die cast 1/2 inch

Product Description

The NSI 1620-DC2 is a 1/2" set screw offset nipple connector used to connect EMT to a box or enclosure, offsetting the conduit system by 3/8". The set screw ensures a secure electrical connection. Its concrete-tight design is ideal for environments where concrete aggregate could abrade conductor insulation.

• Offsets conduit by 3/8" and connect to a box or enclosure
• Perfect for applications where concrete aggregate could abrade conductor insulation
• Zinc die cast body is naturally resistant to corrosion for long-term use in any environment

Product Highlights

This NSI nipple connector features a zinc die cast body, is concrete-tight, and includes a 2-way Phillips/Slotted Head Screw.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 1620-DC2
• Country of Origin: India

Technical Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished Mirror Smooth
• Pack Qty: 200
• GTIN: 00781747716200
• UPC: 781747716200
• EAN: 0781747716200
• UNSPSC: 39131718
• Ul Standard: UL-514B
• Application: Used to connect EMT to box or enclosure. Concrete-tight. Offsets nipple 3/8".
• Use With: EMT Conduit
• Trade Size: 1/2 in.
• Length: 3.25 in.
• Special Features: Furnished with 2-way Phillips/Slotted Head Screw
• Standard: UL
• Type: Set Screw Offset Nipple Connector
• Size: 1/2 in
• Country of Origin: India
• Manufacturer: NSi Industries
• Brand: Bridgeport
• NEMA Rating: FB-1
• Item Type: Set Screw Offset Nipple Connector
