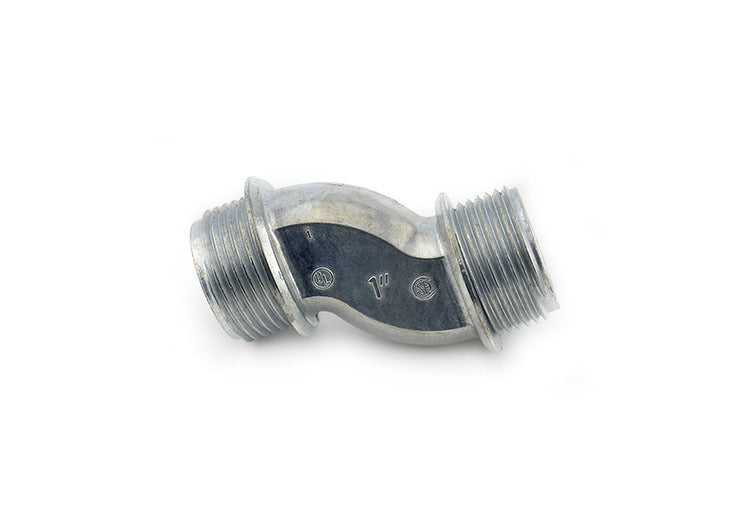

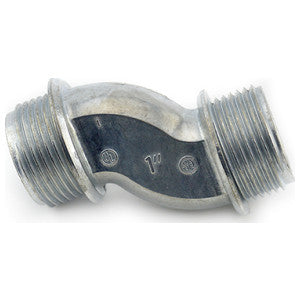

Nsi 1522-DC Die Cast Zinc Offset Conduit Nipple 1 inches

Product Description

The NSI 1522-DC 1" Die Cast Zinc Offset Conduit Nipple serves as a short raceway between two raceways, enclosures or boxes with different axes. These offset nipples are used to offset a conduit system with different axes and create a pressure-tight, vibration-resistant seal when properly connected. The zinc die cast body is naturally resistant to corrosion.

• Raceway With Different Axes: Users can offset a conduit system with differing axes by using the conduit nipple
• NPSM Threads: Operators can create a pressure-tight, vibration-resistant seal when the male and female threads are properly connected
• Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment

Product Highlights

The NSI 1522-DC offset conduit nipple is made of zinc die cast and used to offset the axis of raceway.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 1522-DC
• Country of Origin: US - United States

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• GTIN: 00781747915221
• UPC: 781747915221
• EAN: 0781747915221
• UNSPSC: 39131718
• Ul Standard: UL-514B
• Brand: Bridgeport Fittings
• Connector Type: Nipple
• Thread Size: 1 inch
• Exterior Finish: Zinc
• Thread Type: NPT
• Number of Pieces: 1
• Manufacturer: BRIDGEPORT FITTINGS
• Unit Count: 1.0 Count
• ECCN: EAR99
• Application: Used to offset the axis of raceway 3/4 ".
• Use With: Enclosure Runs
• Trade Size: 1 in.
• Length: 2.843 in.
• Standard: cULus
• Type: Offset Nipple
