NSI 1109A-P 120/208 - 277-Volt AC at 50/60-Hz 40-Amp 2-Pole 24-Hour Mechanical Timer Switch Tork

Product Description

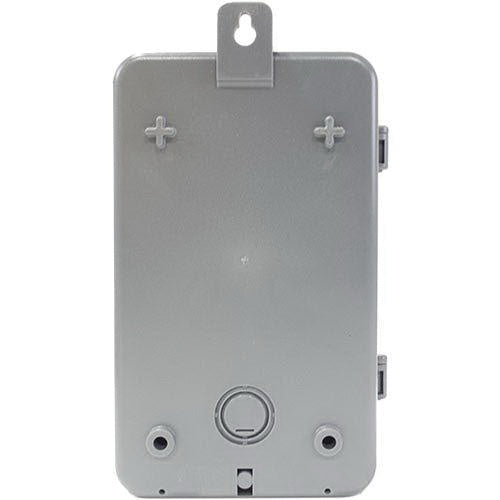

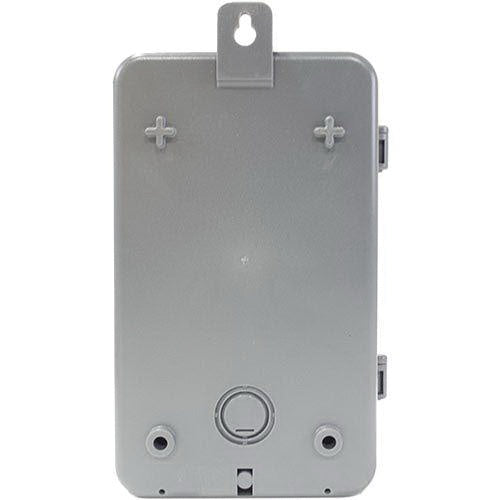

The NSI 1109A-P is a mechanical timer switch designed for 120/208 to 277-Volt AC applications at 50/60-Hz. This 2-pole, 24-hour timer switch is made with a durable polycarbonate housing that enhances its longevity. The switch operates at a power consumption of 3 Watts and can handle various electrical loads.

• Max load capacity: 40 Amps for general purpose
• NEMA 3R rated for outdoor use
• Temperature range: -40 to 65 degrees Celsius

Product Highlights

This timer switch is ideal for lighting, pumps, signs, air conditioning, and water heaters. It offers precise ON/OFF scheduling to manage electrical loads efficiently.

Product Information

Standard Information

• Brand: NSI
• Part Number: 1109A-P

Technical Specifications

• Maximum Load Capacity: 40 Amps at 120/208-277 Volt AC
• Contact Configuration: DPST
• Dimensions: 5-3/8 inches Width x 3-3/8 inches Depth x 8-3/8 inches Height
• Terminal Accommodations: 14-8 AWG
• RoHS Certified: No
• Standards: cULus 60730 Certified
• Energy Star Flag: No
• Country Of Origin: China
