Nsi 1104 Die Cast Zinc Insulated Conduit Nipple 1 inches

Product Description

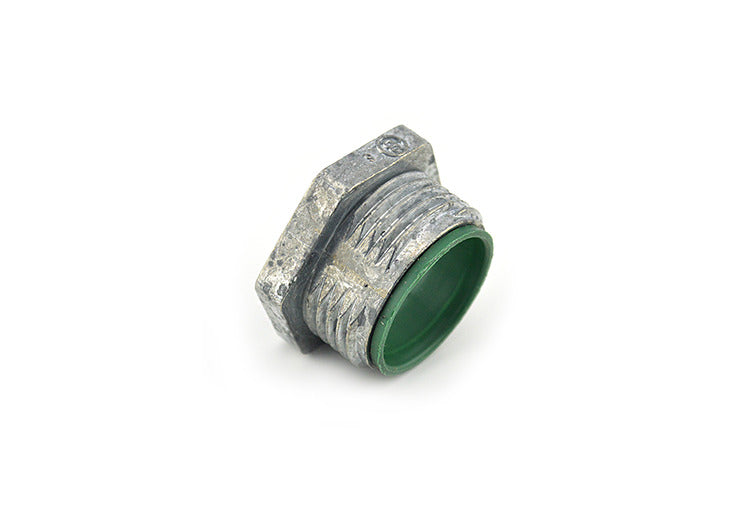

The NSI 1104 die cast zinc insulated conduit nipple serves as a short raceway between enclosures or boxes when used with a locknut. Conduit nipples are used to extend a conduit system and features NPSM threads. The insulator is rated 105 degree C.

• Short Raceway: Users can extend a conduit system by using the conduit nipple with a locknut
• Insulated Throat: The nipple features an insulated throat that is rated up to 105°C
• NPSM Threads: Operators can create a pressure-tight, vibration-resistant seal when the male and female threads are properly connected

Product Highlights

The zinc die cast body is naturally resistant to corrosion for long-term use in any environment.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 1104

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• Pack Qty: 250
• GTIN: 00781747511041
• UPC: 781747511041
• EAN: 0781747511041
• UNSPSC: 39131718
• Ul Standard: UL-514B
• Application: When used with a locknut, conduit nipples serve as a short raceway between enclosures. Insulator rated 105 degree C.
