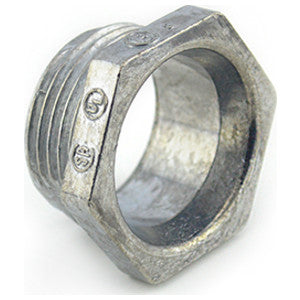

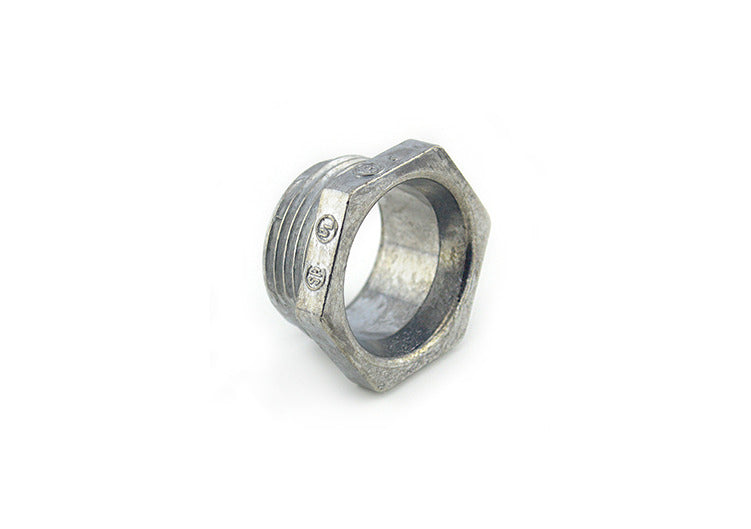

Nsi 1104-DC Die Cast Zinc Conduit Nipple 1 inches NPSM Threads

Product Description

The NSI 1104-DC Die Cast Zinc Conduit Nipple serves as a short raceway between enclosures or boxes when used with a locknut. Conduit nipples are used to extend a conduit system. This nipple features NPSM threads and is naturally resistant to corrosion for long-term use in any environment.

• Short Raceway: Users can extend a conduit system by using the conduit nipple with a locknut
• NPSM Threads: Operators can create a pressure-tight, vibration-resistant seal when the male and female threads are properly connected
• Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment

Product Highlights

The NSI Die Cast Zinc Conduit Nipple is corrosion resistant and can be used through knockout to connect box to conduit coupling.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 1104-DC
• Country of Origin: US - United States

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• Application: When used with a locknut, conduit nipples serve as a short raceway between enclosures.
• Type: Chase Nipple
• Use With: Rigid/IMC Conduit
• Throat Type: Non-Insulated
• Trade Size: 1 in.
• Length: 1.062 in.
