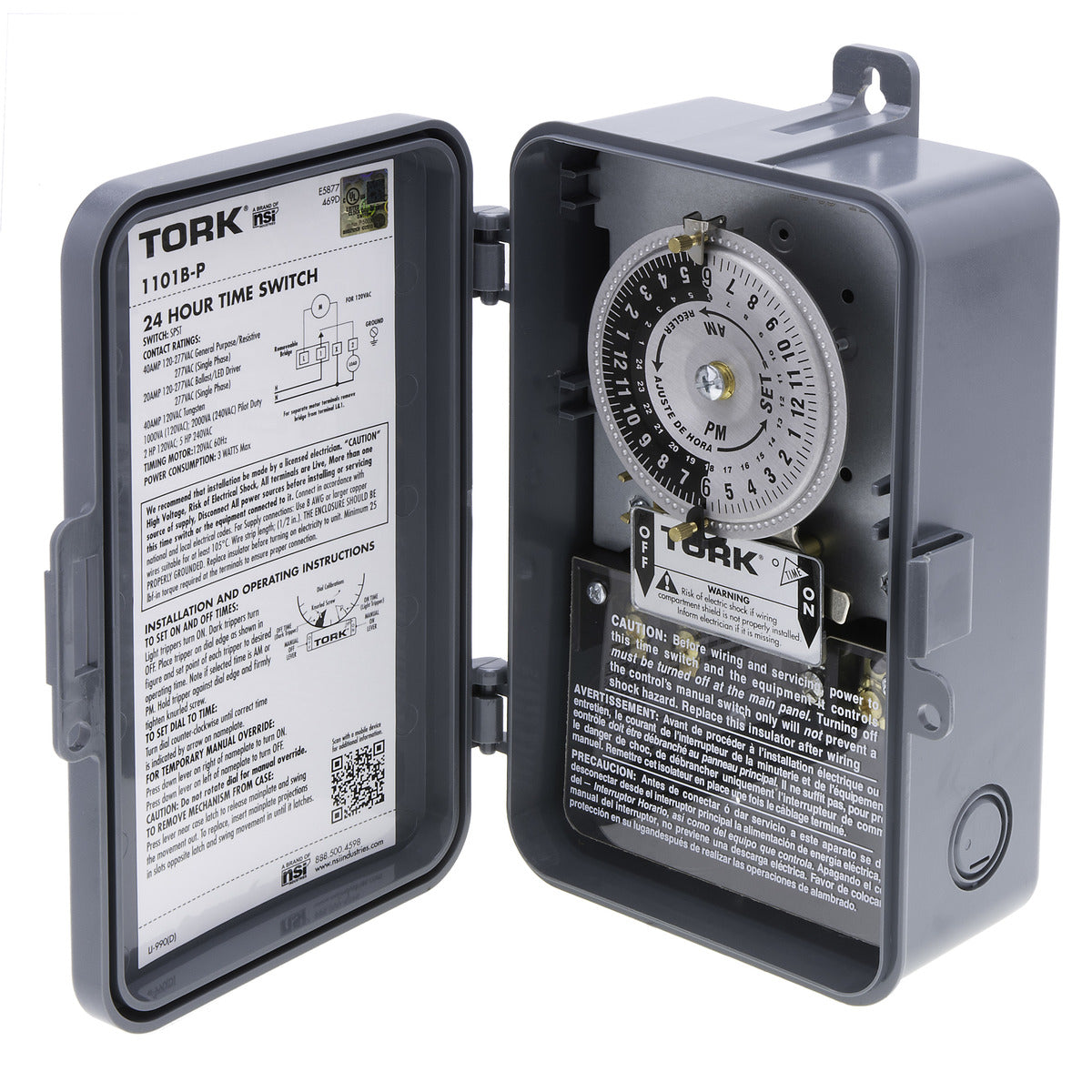

NSI 1101B-P 120-Volt AC at 60 Hz 40-Amp 24 Hour 1100 Series Mechanical 24 Hour Time Switch Tork

Product Description

The NSI 1101B-P is a 120-volt AC time switch that operates at sixty Hertz. This mechanical 24-hour time switch allows for manual override, resuming automatic operations until the next scheduled ON/OFF cycle. It consumes up to three watts of power and features a single pole single throw (SPST) contact configuration.

• Supports up to 40 amps on various load types including resistive and ballast
• Enclosed motor design for protecting internal mechanics
• Suitable for both indoor and outdoor installation

Product Highlights

This device excels in controlling lighting, pumps, signs, air conditioning, water heaters, and fans.

Product Information

Standard Information

• Brand: NSI
• Country of Origin: United States of America

Technical Specifications

• Voltage Rating: 120 Volt AC at 60 Hz
• Amperage Rating: 40 Amp
• Temperature Rating: -40 to 165 degrees Fahrenheit
• NEMA Rating: NEMA 3R
• Dimensions: 5.062 inches Length x 3.062 inches Width x 8.312 inches Height
• Maximum Load Capacity: General Purpose: 40 Amp at 120-277 Volt
• Timing Range: 24 Hour
• Standards: cULus Certified
