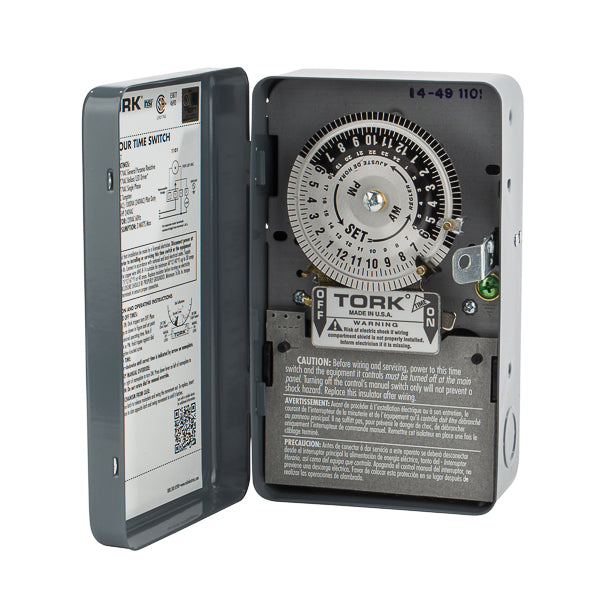

NSI 1101 NSI Tork® 1101 1100 ON/OFF Mechanical Time Switch, 24 hr Setting, 120 VAC, 2 hp, SPST Contact

Product Description

The NSI Tork® 1101 is a mechanical time switch designed for ON/OFF operation, ideal for controlling various electrical devices. This model features a 24-hour setting and operates on a voltage of 120 VAC. It is suitable for loads up to 2 horsepower and can handle a maximum amperage rating of 40 A. The switch is equipped with a single pole and a single throw (SPST) contact form. The device is enclosed in a NEMA 1 rated enclosure, ensuring protection against dust and moisture.

• 24-hour timer operation
• SPST contact form with 2 hp capacity
• Threaded mounting for easy installation

Product Highlights

This timer is suitable for a variety of applications, including lighting control, pumps, signs, air conditioning, and heater operations.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Operation Mode: ON/OFF
• Voltage Rating: 120 VAC
• Horsepower: 2 hp
• Amperage Rating: 40 A
• Enclosure Type: NEMA 1
• Temperature Rating: -40 to 165 deg F
• Dimensions: 4.687 in L x 2.937 in W x 7.937 in H
• Time Setting: 24 hr
• Mounting Type: Threaded
• Contact Form: SPST
• Number of Poles: 1
