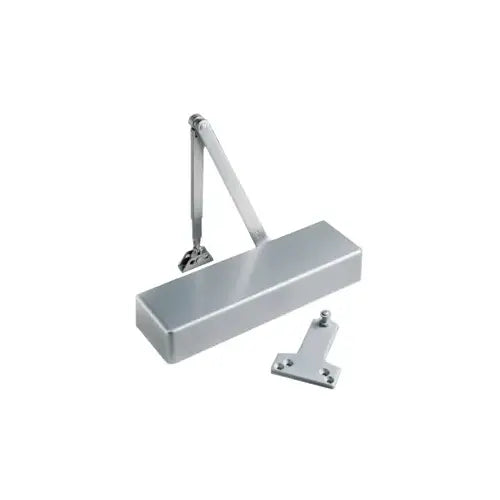

NORTON UNI7500-SN-36-689 ADA Door Closer Adjustable 1-6

Product Description

The NORTON UNI7500-SN-36-689 is an ADA door closer adjustable from 1-6. This model includes a Unitrol arm with compression spring buffer for controlled stops. The fixed door stop is set during installation, allowing a range from eighty-five degrees to one hundred ten degrees in five-degree increments. The door stop features a shock-absorbing heavy-duty spring action for enhanced performance.

• ADA compliant door closer
• Adjustable from settings 1 to 6
• Unitrol arm with compression spring for controlled stops

Product Highlights

This door closer is designed for durability and ease of use, making it suitable for high-traffic areas.

Product Information

Standard Information

• Grade: Grade 1
• Handing: Non-Handed

Technical Specifications

• Options: Adjustable backcheck, self-drilling screws, sleeve nut
• Closer Type: Mechanical, surface mount
• Maximum Opening: 180 degrees
• Mounting: Parallel arm
• Body Type: Cast aluminum
• Arm Function: Non-hold open
• Spring Tension: Adjustable 1-6
• Height: 4.13 inches
• Length: 20.28 inches
• Width: 10.04 inches
