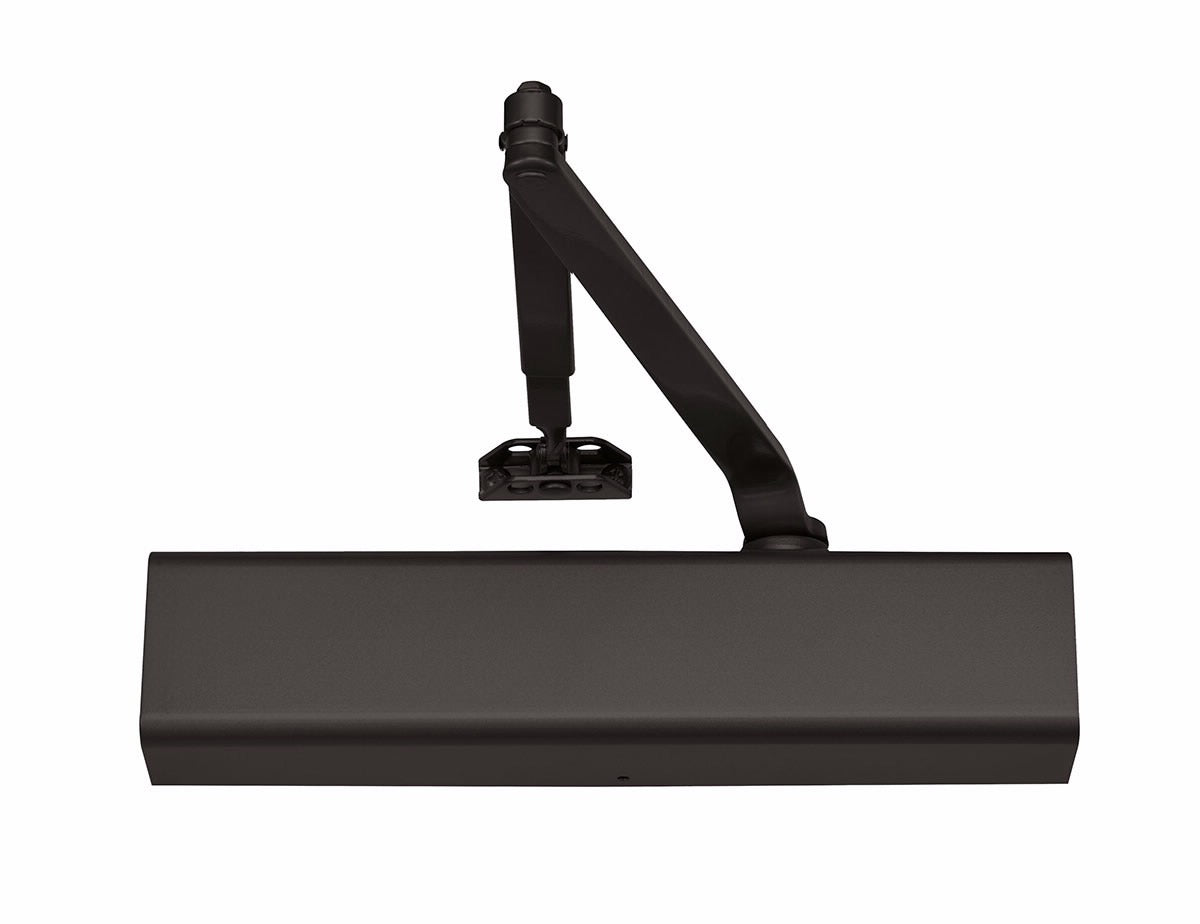

Norton Closers 8501690 Surface Mount Door Closer Dark Bronze

Product Description

The NORTON CLOSERS 8501690 is an adjustable surface mount door closer with a full cover and sex nut mounting hardware, finished in dark bronze. It uses a rack and pinion mechanism with hydraulic valve control to regulate door swing speed and closing force. The adjustable backcheck feature helps prevent door damage from hard openings. At 7.3 pounds and measuring 15.2 inches in length, 6.3 inches in width, and 3.7 inches in height, this unit is sized for standard commercial and residential door applications. Installation is typically performed by a licensed door hardware technician or commercial contractor.

This door closer suits commercial and residential entry doors where controlled latching speed, closing speed, and backcheck protection are required. The dark bronze finish integrates with common door hardware finishes found in office buildings, retail spaces, and multifamily residential entrances. The full cover conceals internal components and provides a clean finished appearance. Sex nut mounting hardware is included for parallel arm or other standard surface mount configurations.

Key Features

• Adjustable closing and latching speed valves for field tuning without replacement
• Rack and pinion mechanism with hydraulic valve-controlled backcheck
• Full cover included for concealed, finished appearance
• Sex nuts included for surface mount fastening
• Dark bronze finish compatible with standard commercial door hardware sets
• Non-handed design suitable for left or right door swings

Compatibility

Designed as an OEM-style surface mount door closer for standard commercial and residential door applications requiring adjustable hydraulic closing control.

Installation Notes

Installation is performed by a qualified door hardware technician or commercial contractor familiar with door closer mounting requirements. Power down any electrified hardware connected to the door before beginning work. Follow the template provided with the closer for accurate hole placement, and verify that the door and frame are structurally sound before mounting. Consult local building codes and ADA requirements for closing force and opening resistance compliance.
