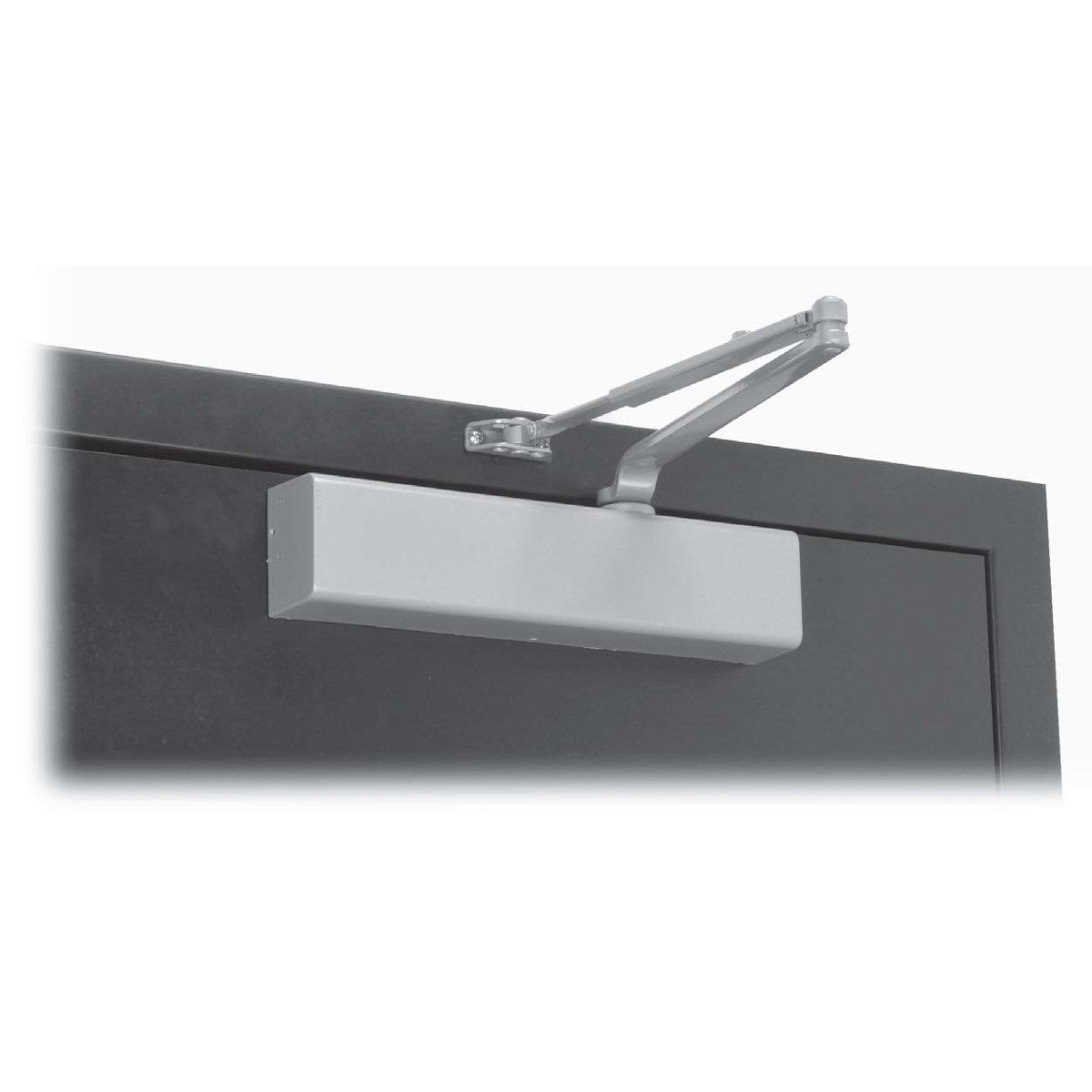

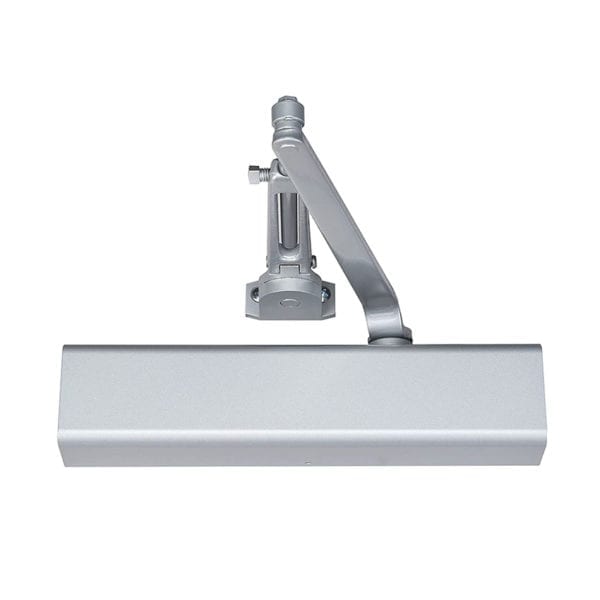

Norton 8501H-SN-689 Grade 1 Tri Mount Friction Hold Open Door Closer Adjustable Size 1 to 6

Product Description

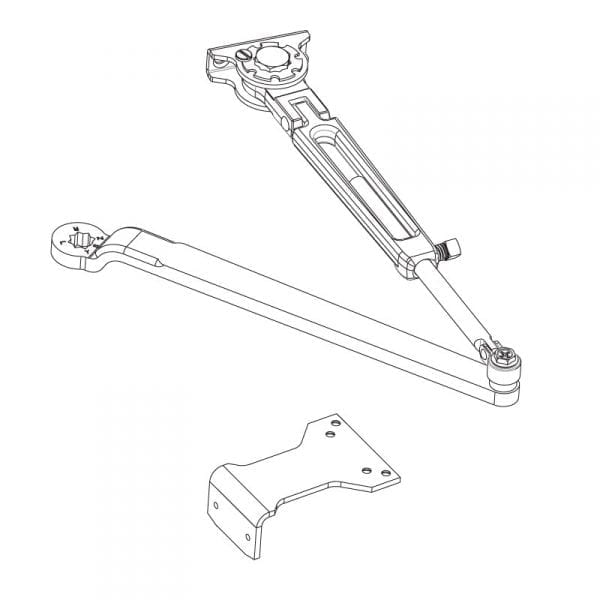

The Norton 8501H-SN-689 Grade 1 Tri Mount Door Closer is designed for reliability and durability. This product features adjustable spring sizes from one to six. It includes a 7701-8 friction hold-open arm and a 1628H soffit adapter plate, allowing for versatile installation options. The closer is made with a cast aluminum body for strength and longevity.

• Adjustable spring sizes from one to six
• Multiple mounting options with Tri-Style packaging

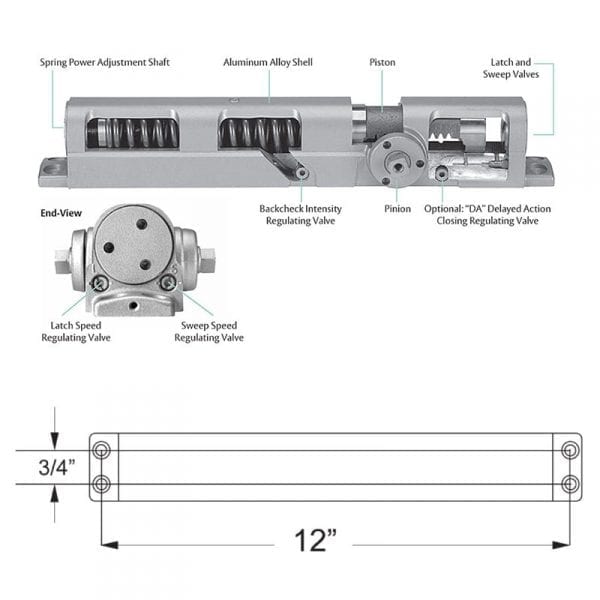

• Standard valves for latch, sweep, and backcheck intensity

Product Highlights

This closer supports various applications with medium-duty usage for hollow metal, wood, or aluminum doors, and it meets ADA compliance standards.

Product Information

Standard Information

• Brand: Norton
• Manufacturer: ASSA ABLOY / Norton

Technical Specifications

• Finishes: Available in aluminum, statuary bronze, light bronze, and brass
• Mounting Options: Regular, top jamb, and parallel arm
• Body Construction: Cast aluminum
• Handing: Non-handed
• ANSI/BHMA Standard: A156.4, Grade 1 certified
• Door Size Compatibility: Thirty to forty-eight inches
• Housing Dimensions: Two and a half inches high, two and one-eighth inches wide, thirteen inches long
• Projection: Two and one-eighth inches with standard covers
