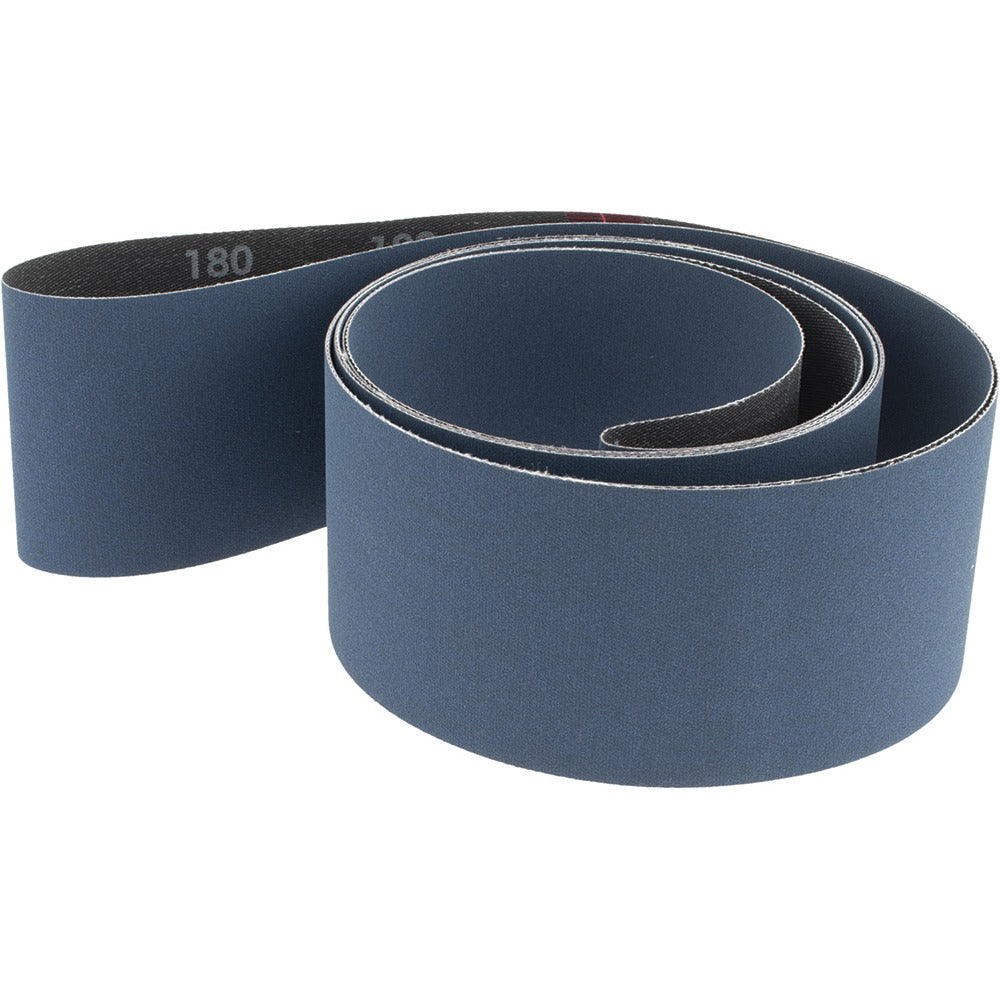

Norton 78072728785 Abrasive Belt 180 Grit 3x132 in

Product Description

The NORTON 78072728785 is a coated abrasive belt designed for continuous-loop belt sanding operations in metalworking, fabrication, and finishing applications. Built on a heavy-duty X-weight polyester cloth backing, it runs the R823P series zirconia alumina grain in a closed-coat configuration at 180 grit. Zirconia alumina is a self-sharpening abrasive that fractures under pressure to expose fresh cutting edges, maintaining consistent stock removal over the life of the belt. The polyester cloth backing provides dimensional stability under tension and resists tearing on high-speed belt sanders. This belt measures 3 inches wide and 132 inches long and weighs 0.6 pounds.

This belt is suited for wet or dry metal grinding, weld blending, and surface conditioning on ferrous and non-ferrous metals. The 180-grit fine grade makes it appropriate for intermediate to finish-stage passes where surface refinement is the goal rather than aggressive material removal. Fabricators, pipefitters, and metal finishers typically run belts of this type on stationary or portable belt sanding machines in shop and field settings. The closed-coat construction keeps abrasive grain density high, which supports consistent finish quality on flat and slightly contoured surfaces.

Key Features

• Zirconia alumina grain self-sharpens during use, extending belt life compared to standard aluminum oxide
• Closed-coat configuration delivers high grain density for uniform surface finish
• X-weight polyester cloth backing provides high tensile strength and dimensional stability under tension
• Supports both wet and dry operation for flexible shop use
• 180 grit fine grade suited for intermediate and finish-stage material removal
• 3 inches x 132 inches format fits a wide range of belt sanding machine configurations

Compatibility

Designed as an OEM-style replacement or standard stock coated abrasive belt for belt sanders accepting a 3-inch wide by 132-inch long continuous loop belt.

Installation Notes

Belt installation should be performed by a qualified operator familiar with the specific belt sander being serviced. Power down and lockout the machine before replacing the belt. Verify belt tracking direction by checking the arrow printed on the inside of the belt before mounting. Confirm proper tension and tracking adjustment before returning the machine to service.
