NORTON 7786-BSP Narrow Frame Drop Plate for 7500 Series

Product Description

The Norton 7786-BSP Narrow Frame Drop Plate is designed for the 7500 Series. This component is used where the narrow top rail of the door prevents the closer from being mounted directly on the door surface. It is essential for closers that are mounted on top rails between one and seven-eighths inches and three and three-eighths inches in height. It is suitable for both interior and exterior doors.

• For use with 7500 Series Institutional Door Closer
• Designed for narrow frame applications
• Enables closer mounting on top rails between one and seven-eighths inches and three and three-eighths inches

Product Highlights

This drop plate allows for correct installation of closers on doors with specific top rail measurements, ensuring functionality.

Product Information

Standard Information

• Series: Parts/Accessories
• Material: Bronze

Technical Specifications

• Alternate Part Number: 194854
• For Use With: 7500 Series Institutional Door Closer
• Color Code: BSP
• Function: Drop Plate
• Finish Description: Black Powder Coat

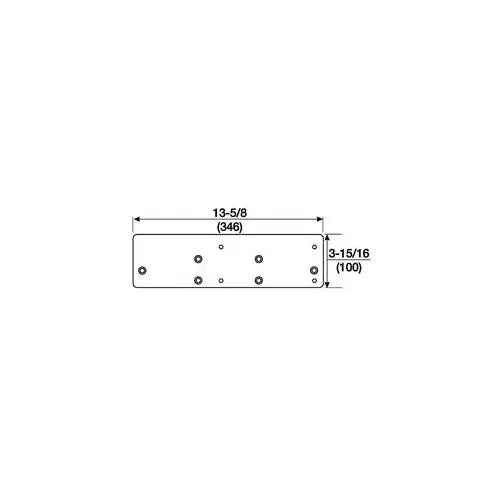

• Product Height: 3-15/16 Inch
• Product Length: 13-5/8 Inch
• ADA Compliant: No
• Finish Family: Black
• Function Family: Part/Component
• Product Type: Door Control Part/Accessory
• Manufacturer Parent: Assa Abloy
