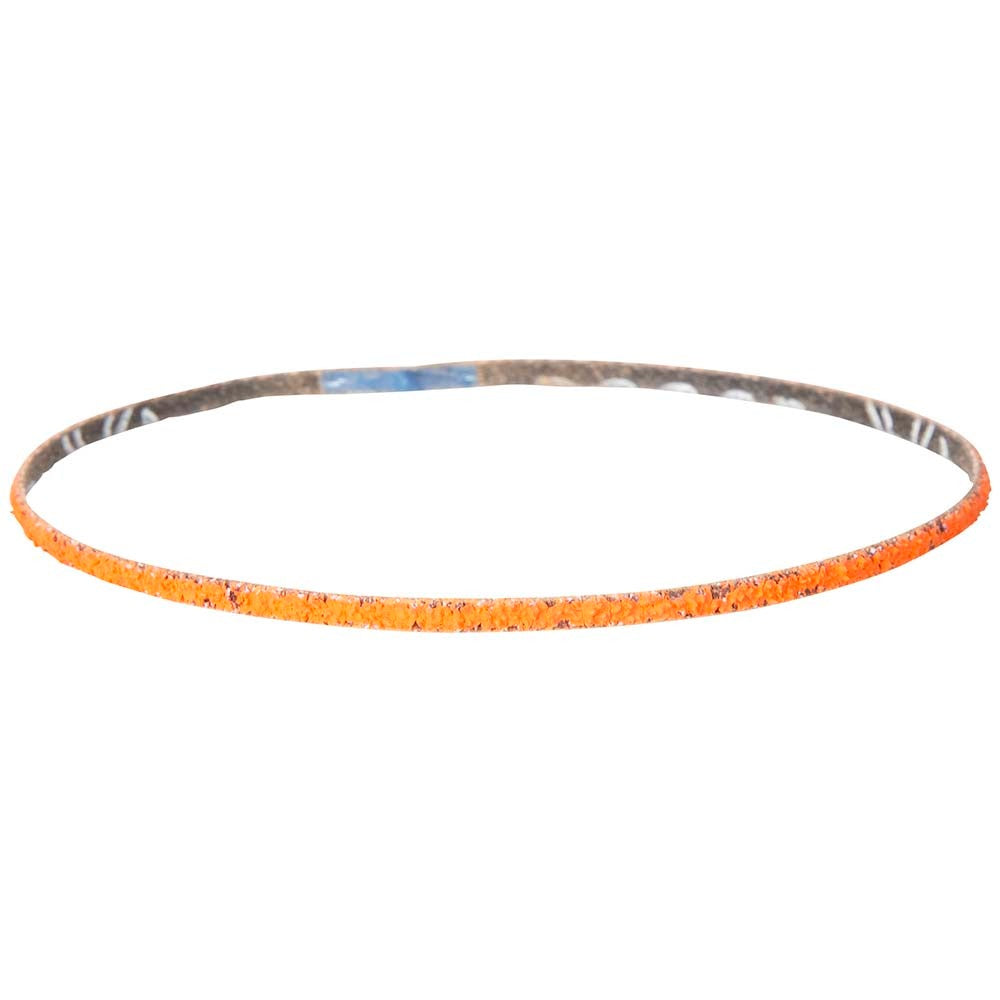

Norton 69957392150 Abrasive Belt 80 Grit Ceramic

Product Description

The NORTON 69957392150 is a coated abrasive belt designed for aggressive material removal in grinding and finishing applications. It measures 3/8 inches wide by 13 inches long and runs an 80 grit coarse grade ceramic alumina abrasive on a heavyweight polyester backing with closed coat density. The R980P series ceramic alumina grain delivers consistent cut rates and extended belt life compared to conventional aluminum oxide. This belt is rated for both wet and dry operation, making it suitable for a range of shop and field conditions. Metalworkers, pipefitters, and maintenance technicians use this size on narrow-belt file sanders and detail grinders.

This belt is sized for narrow-belt file sanders and pencil grinders that accept 3/8 inches by 13 inches belts. It is well suited for weld blending, deburring, and contour finishing on pipe, tubing, and tight-radius workpieces. The coarse 80 grit rating makes it most effective as an initial stock removal belt rather than a finishing step. The closed coat construction keeps abrasive density high for fast cutting on ferrous and non-ferrous metals. The Y-weight polyester backing resists tearing under the tension and flex loads common in file-belt operation.

Key Features

• Ceramic alumina abrasive grain for high cut rate and extended service life
• 80 grit coarse grade suited for rapid stock removal and weld blending
• Closed coat construction maximizes abrasive surface coverage
• Y-weight polyester backing provides high tensile strength and flex resistance
• Rated for both wet and dry operation
• R980P series belt construction from NORTON

Compatibility

Designed as a direct-fit replacement belt for narrow file sanders and detail grinders accepting a 3/8 inches by 13 inches belt size.

Installation Notes

Installation is performed by metalworking, maintenance, or fabrication trades. Before mounting, confirm the tool is disconnected from its power source and the tracking guide is clear. Thread the belt over the platen and drive roller with the arrow on the belt backing aligned to the direction of travel. Inspect the belt splice for alignment before operating at full speed.
