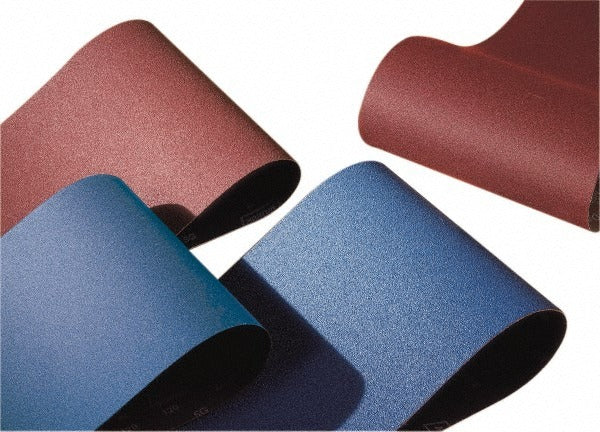

Norton 69957344777 Abrasive Belt 100 Grit 25x48 in

Product Description

The NORTON 69957344777 is a coated abrasive belt engineered for demanding material removal and finishing applications. Measuring 25 inches wide by 48 inches long, it runs on wide-belt industrial sanders common in woodworking shops, metalworking facilities, and fabrication environments. The abrasive material is zirconia alumina, a self-sharpening grain that maintains cut rate under high pressure and heat. At 100 grit, this belt falls in the fine grade range, making it suitable for intermediate to finish-stage stock removal. The polyester cloth backing is rated X-weight for rigidity and durability under continuous use, and the closed-coat density delivers consistent surface coverage across the full belt face.

This belt is designed for wide-belt sanding machines used in industrial and commercial settings. Typical applications include sanding large flat panels, solid wood, MDF, metals, and composite materials. It supports both wet and dry operation, giving operators flexibility depending on the material and machine setup. The Series R823P designation identifies it within the NORTON coated abrasives line. The closed-coat construction limits loading on fine-grain materials and promotes a uniform finish. It is a practical choice for production environments where consistent grit performance across belt life is critical.

Key Features

• Zirconia alumina grain self-sharpens under pressure for sustained cut rate
• 100 grit fine grade for intermediate to finish-stage material removal
• X-weight polyester cloth backing resists tearing and flexing under heavy loads
• Closed-coat construction delivers uniform abrasive coverage and consistent finish
• Supports wet and dry sanding operation
• Wide 25 inches by 48 inches format suits industrial wide-belt sanders

Compatibility

Designed as an OEM-style replacement or direct-use abrasive belt for industrial wide-belt sanding machines accepting a 25 inch by 48 inch belt format.

Installation Notes

Belt installation should be performed by qualified machine operators or maintenance personnel following the equipment manufacturer's guidelines. Power down and lock out the sanding machine before changing belts. Verify belt tracking tension and direction-of-travel arrows before resuming operation. Inspect the platen and contact drum for wear or debris that could cause uneven belt loading or premature failure.
