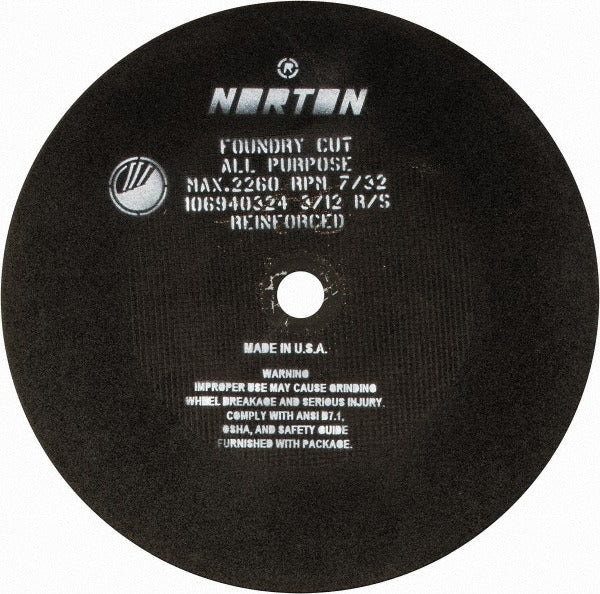

Norton 69083125993 Cut-off Wheel 24in Aluminum Oxide Type 1

Product Description

The NORTON 69083125993 is a large-diameter Type 1 flat cut-off wheel engineered for demanding stationary grinder applications. Measuring 24 inches in diameter and 7/32 inches thick with a 1-3/4 inch arbor hole, this wheel uses an aluminum oxide abrasive bonded with a resinoid bond for consistent, controlled cutting. Both sides are reinforced, adding structural integrity at sustained operating speeds. The maximum rated speed is 2,260 RPM. At 10.655 pounds, this is a heavy-duty wheel suited for high-volume cutting tasks in industrial and fabrication environments. Installation and operation require a stationary grinder configured for the correct arbor size and speed rating.

This cut-off wheel is designed for cutting steel and stainless steel in stationary grinder setups. Its foundry-free cut specification makes it appropriate for applications where contamination control matters, including stainless steel work where iron or sulfur contamination would compromise weld integrity or corrosion resistance. Typical use cases include structural steel fabrication shops, pipe cutting, and heavy industrial maintenance operations where a large-format wheel is needed for deep or wide stock.

Key Features

• 24 inch diameter provides cutting capacity for large cross-section stock on stationary grinders
• Aluminum oxide abrasive with resinoid bond delivers consistent cut performance on steel and stainless steel
• Both sides reinforced for structural integrity at rated operating speeds
• Foundry-free cut specification — safe for stainless steel applications requiring contamination control
• Type 1 (01/41) flat wheel profile for straight cutting passes
• 2,260 RPM maximum speed rating matched to large-diameter stationary grinder use

Compatibility

Designed for use with stationary grinders accepting a 24 inch diameter, Type 1 cut-off wheel with a 1-3/4 inch arbor hole. Rated for cutting steel and stainless steel.

Installation Notes

This wheel must be mounted on a stationary grinder by a qualified operator familiar with large-format abrasive wheel safety. Before mounting, verify the machine speed does not exceed the 2,260 RPM maximum wheel rating — overspeed is a serious safety hazard with abrasive wheels. Inspect the wheel for cracks or chips before each use and never use a damaged wheel. Follow ANSI B7.1 and applicable shop safety standards for abrasive wheel mounting, guarding, and operation.
