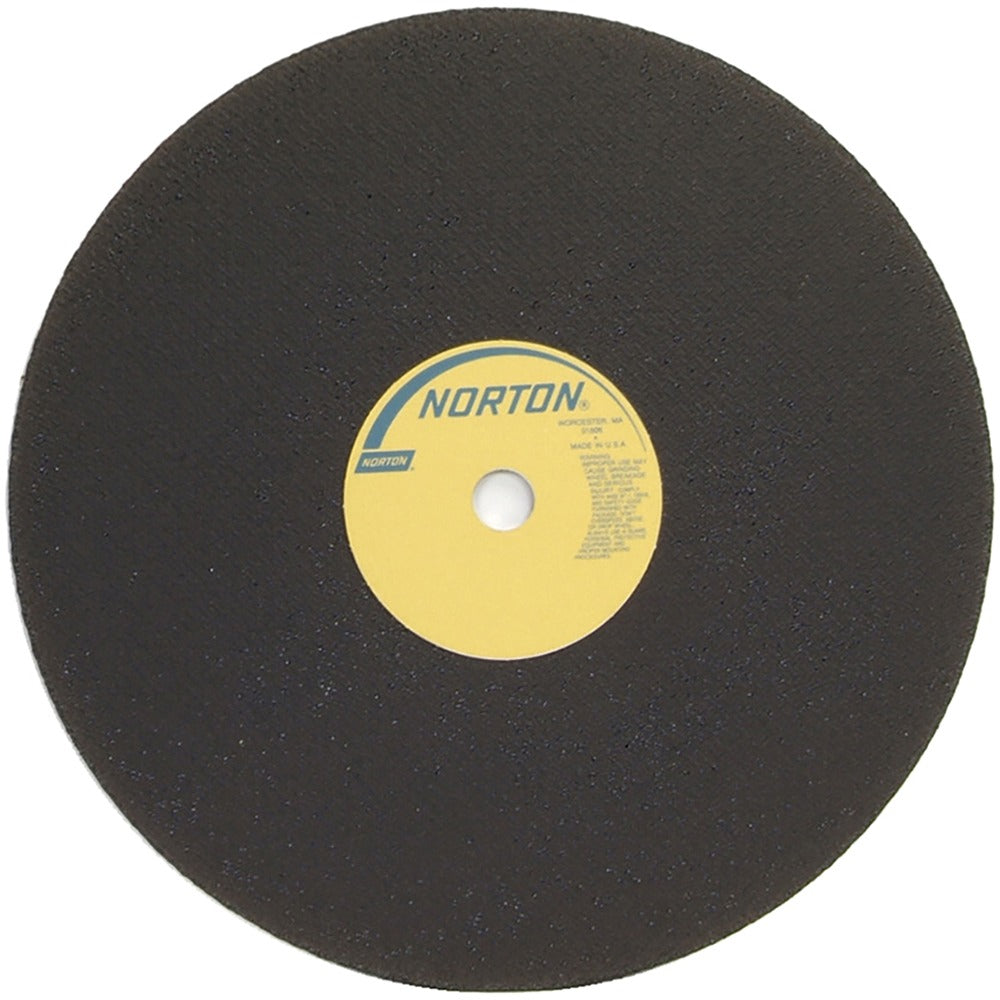

Norton 69083125992 Cut-off Wheel 24in Zirconia Alumina

Product Description

The NORTON 69083125992 is a large-format Type 1 (01/41) cut-off wheel designed for heavy-duty stationary grinder applications. Measuring 24 inches in diameter and 7/32 inches thick with a 1-3/4 inch arbor hole, this wheel uses a zirconia alumina abrasive grain bonded with a resinoid bond and reinforced on both sides for added structural integrity during operation. It carries a maximum operating speed of 2260 RPM. The NZ Foundry Long Life specification indicates this wheel is engineered for extended service life in high-volume cutting environments. Installation and operation are handled by experienced metalworking or maintenance trade professionals.

This cut-off wheel is suited for stationary grinder setups handling ferrous and stainless steel workpieces. Typical use cases include foundry operations, fabrication shops, and industrial maintenance environments where large-diameter straight cutting on steel or stainless steel stock is required. The zirconia alumina abrasive delivers consistent cut rate on both mild steel and the harder work-hardening surfaces common in stainless steel cutting.

Key Features

• 24 inches diameter Type 1 (01/41) straight cut-off wheel for stationary grinder use
• Zirconia alumina abrasive grain for high cut rate on steel and stainless steel
• Resinoid bond with reinforcement on both sides for structural durability
• 2260 RPM maximum operating speed
• NZ Foundry Long Life specification for extended service in demanding applications
• Rated for cutting steel and stainless steel

Compatibility

Designed for use with stationary grinders accepting a 24 inch diameter, 1-3/4 inch arbor hole, Type 1 (01/41) cut-off wheel configuration. Rated for steel and stainless steel cutting applications.

Installation Notes

Always power down and lock out the stationary grinder before mounting or removing abrasive wheels. Verify the machine spindle speed does not exceed the 2260 RPM maximum rating marked on the wheel before operation. Inspect the wheel for cracks, chips, or damage before each use and do not mount a damaged wheel. Follow ANSI B7.1 safety standards and the grinder manufacturer guidelines for proper flange type, blotter use, and mounting torque.
