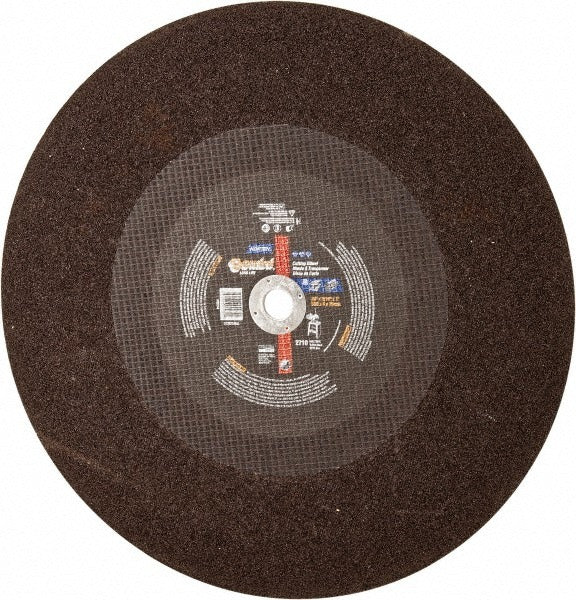

Norton 69078609034 Cut-off Wheel 20in Aluminum Oxide

Product Description

The NORTON 69078609034 is a 20-inch diameter Type 1 (01/41) cut-off wheel designed for stationary abrasive cutting tools. Built with aluminum oxide abrasive and a resinoid bond, it delivers consistent stock removal on ferrous metals. The wheel measures 3/16 inches thick with a 1-inch arbor hole and is rated to a maximum of 2710 RPM. Both sides are reinforced for added structural integrity during high-load cutting passes. The Gemini Long Life specification indicates an extended wear profile compared to standard cut-off wheels. Weighing 2 pounds, this is a heavy-duty wheel intended for professional stationary saw setups, not handheld grinders.

This wheel is suited for stationary cutting applications in fabrication shops, mechanical contractors, and industrial maintenance environments. It is rated for cutting steel and stainless steel, making it appropriate for pipe, structural steel, and flat stock work. The 20-inch diameter and 2710 RPM max rating are matched to large stationary abrasive cut-off saws. Installers and fabricators working with structural steel components or stainless pipe will find this wheel sized for production-volume cutting rather than light-duty or handheld use.

Key Features

• 20-inch diameter Type 1 (01/41) flat wheel profile for stationary cut-off saws
• Aluminum oxide abrasive with resinoid bond for consistent cutting on steel and stainless steel
• 3/16-inch thickness provides a balance between wheel rigidity and kerf width
• Both sides reinforced for structural durability under load
• Gemini Long Life construction for extended wheel service life
• 2710 RPM maximum speed rating — stationary tool use only

Compatibility

Rated for use with stationary abrasive cut-off tools accepting a 20-inch diameter, 1-inch arbor hole wheel at or below 2710 RPM. Suitable for cutting steel and stainless steel.

Installation Notes

This wheel is intended for stationary abrasive cut-off saws only — do not mount on handheld angle grinders or other portable tools. Always power down and lock out the machine before mounting or removing the wheel. Verify that the machine spindle RPM does not exceed the 2710 RPM maximum rating stamped on the wheel. Inspection for cracks or damage before each use is required per standard abrasive safety practices.
