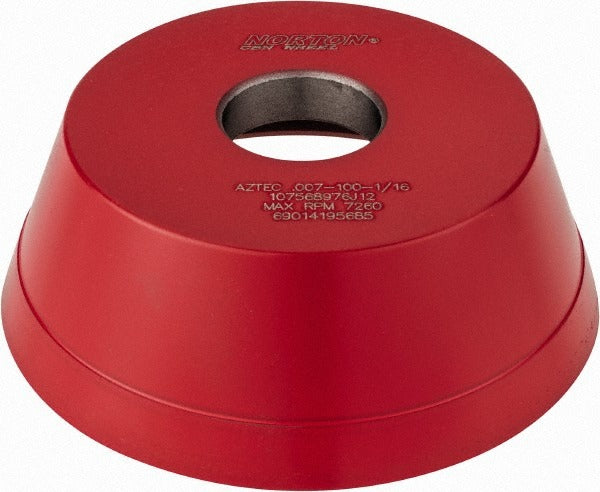

Norton 69014195685 Type 11V9 Cbn Grinding Wheel 5in 100G

Product Description

The NORTON 69014195685 is a Type 11V9 superabrasive grinding wheel built around Cubic Boron Nitride (CBN) abrasive grain, engineered for precision grinding of ferrous materials including hardened steels and high-speed steel tooling. At 5 inches in diameter with a 100 grit, Fine grade cutting face, this wheel operates under the Aztec .007 specification with a resinoid bond system. It supports both wet and dry operation, making it adaptable to a range of surface and tool-and-cutter grinding setups. The 70-degree face angle and 1/16-inch superabrasive depth deliver consistent stock removal while maintaining tight tolerances on finished surfaces.

This wheel is suited for tool room and production grinding applications where CBN abrasive outperforms conventional aluminum oxide or silicon carbide in wheel life and thermal control. Typical use cases include resharpening of milling cutters, drills, reamers, and other HSS or carbide-tipped tooling on cylindrical or tool-and-cutter grinders. The 1-1/4-inch arbor hole fits standard grinding machine spindles common in trade and industrial toolroom environments. Wet or dry operation gives technicians flexibility based on machine coolant availability.

Key Features

• Cubic Boron Nitride (CBN) superabrasive grain for long wheel life on ferrous and hardened steel tooling
• Type 11V9 form factor with 70-degree face angle for precision tool-and-cutter grinding
• Resinoid bond system compatible with both wet and dry grinding operation
• 100 grit Fine grade delivers smooth surface finish on cutting tool edges
• Aztec .007 specification with 100 concentration superabrasive layer
• 1/16-inch superabrasive depth and 7/16-inch face width for controlled material engagement

Compatibility

Designed as a superabrasive tool-and-cutter grinding wheel for use on machines accepting a 1-1/4-inch arbor bore and wheels up to 5 inches in diameter. No specific machine models were identified in the product data.

Installation Notes

Mounting and dressing of CBN superabrasive wheels should be performed by a qualified grinding machine operator familiar with ANSI B11.9 or equivalent wheel-mounting standards. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for visible damage before installation and verify spindle speed does not exceed the wheel maximum RPM rating. Do not use conventional dressing sticks on CBN wheels without confirming compatibility with the bond type.
