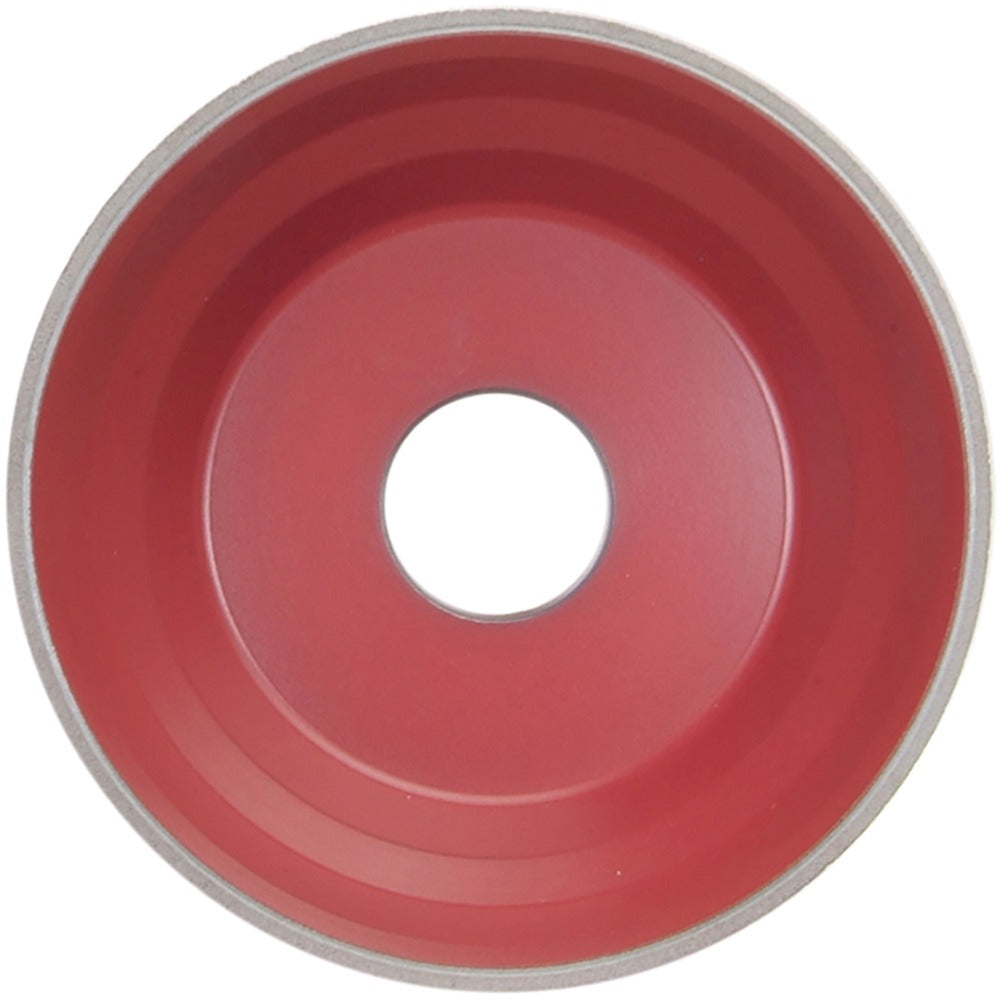

Norton 69014195683 Cbn Grinding Wheel 3-3/4 in Type 11V9

Product Description

The NORTON 69014195683 is a Type 11V9 cubic boron nitride (CBN) superabrasive grinding wheel designed for precision tool grinding applications. Built with a resinoid bond and rated at 100 grit Fine grade, it delivers controlled material removal on hardened steels and ferrous alloys. The wheel measures 3-3/4 inches in diameter with a 1-1/2 inch overall thickness and accepts a 1-1/4 inch arbor hole. Carrying the Aztec .007 trade designation with a 1/16 inch superabrasive depth and 100 concentration, this wheel is suited for tool rooms and grinding shops where consistent edge geometry is required. It supports both wet and dry operation.

This wheel is used in tool and cutter grinding operations, primarily in professional machine shops, tool rooms, and industrial maintenance environments. The Type 11V9 form factor with a 70-degree face angle and 3/8 inch face width makes it appropriate for clearance grinding and profile work on cutting tools such as end mills, drills, and reamers. It is installed and operated by machinists and tool grinders working on surface or cylindrical tool grinding equipment with compatible spindle and arbor configurations.

Key Features

• Cubic boron nitride (CBN) abrasive for long wheel life on hardened ferrous materials
• Type 11V9 form with 70-degree face angle for clearance and profile grinding
• Resinoid bond provides consistent cut rate and surface finish control
• 100 grit Fine grade balances stock removal with surface quality
• Supports both wet and dry grinding operation
• 1/16 inch superabrasive depth with 100 concentration for efficient CBN utilization

Compatibility

Designed as a replacement or production-use CBN wheel for tool and cutter grinders accepting a 1-1/4 inch arbor hole and a 3-3/4 inch diameter Type 11V9 wheel form. No specific machine model compatibility was stated in the product data.

Installation Notes

CBN grinding wheels must be mounted and dressed only by qualified machinists or grinding technicians familiar with superabrasive wheel handling. Inspect the wheel for cracks or damage before mounting and confirm the machine spindle speed does not exceed the wheel rated speed. Secure the arbor nut to the machine manufacturer specification using proper flanges rated for the wheel diameter. When switching between wet and dry operation, verify coolant compatibility with the resinoid bond per the wheel manufacturer guidelines.
