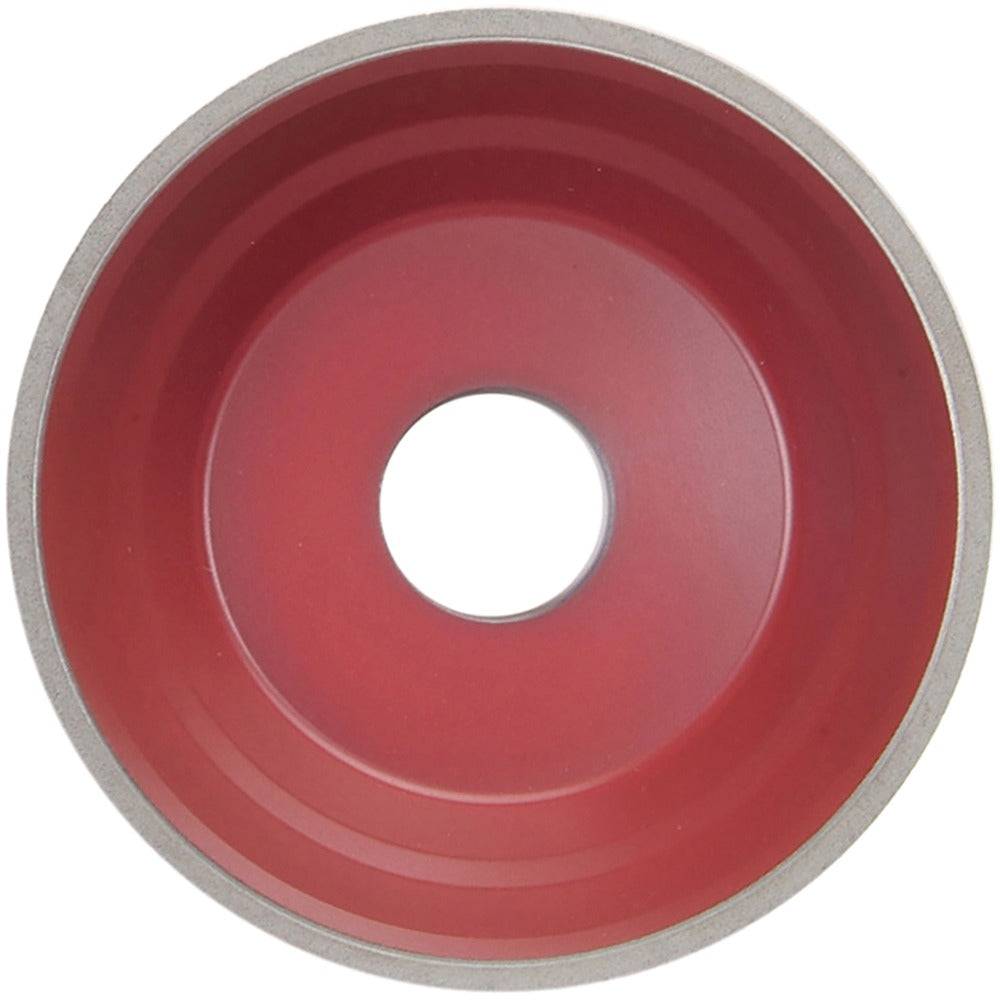

Norton 69014195682 Cbn Grinding Wheel 5in Type 11V9 150 Grit

Product Description

The NORTON 69014195682 is a Type 11V9 cubic boron nitride (CBN) grinding wheel designed for precision tool grinding applications. Built with a resinoid bond and 100 concentration CBN abrasive, it delivers consistent stock removal and fine surface finishes on hardened steels and ferrous tooling. The wheel measures 5 inches in diameter with a 1-3/4 inch overall thickness and accepts a 1-1/4 inch arbor bore. At 150 grit, it falls in the Very Fine grade range, making it appropriate for finish grinding and light material removal. It operates in both wet and dry conditions. Machinists, tool and cutter grinders, and grinding specialists typically specify this wheel for high-precision resharpening work.

This wheel suits tool room and production grinding environments where tight tolerances on cutting tool geometry are required. The Type 11V9 cup form with a 70-degree face angle and 7/16 inch face width concentrates the abrasive zone for controlled contact on relief faces, rake faces, and similar tool surfaces. The 1/8 inch superabrasive depth provides an extended service life relative to conventional abrasive wheels. It is suited for use on surface grinders, tool and cutter grinders, and CNC grinding machines configured for cup-wheel operation.

Key Features

• CBN abrasive with 100 concentration for consistent cutting performance on hardened ferrous materials
• Type 11V9 cup wheel form with 70-degree face angle for precision tool geometry grinding
• 150 grit Very Fine grade produces smooth finish surfaces on cutting tools
• Resinoid bond compatible with wet and dry grinding operations
• 1/8 inch superabrasive depth extends wheel service life
• AZTEC .007-150-1/8 specification designation for cross-reference and ordering

Compatibility

Designed as an OEM-style replacement or direct specification wheel for tool and cutter grinders and surface grinding machines that accept a Type 11V9 cup wheel with a 1-1/4 inch arbor bore and 5 inch diameter.

Installation Notes

CBN grinding wheels must be mounted and dressed by a qualified machinist or grinding specialist following the machine manufacturer's mounting procedures. Inspect the wheel for cracks or damage before installation and never exceed the rated maximum operating speed marked on the wheel. Power down and lock out the grinding machine before mounting or removing the wheel. Follow ANSI B7.1 safety code requirements for the storage, handling, and use of grinding wheels.
