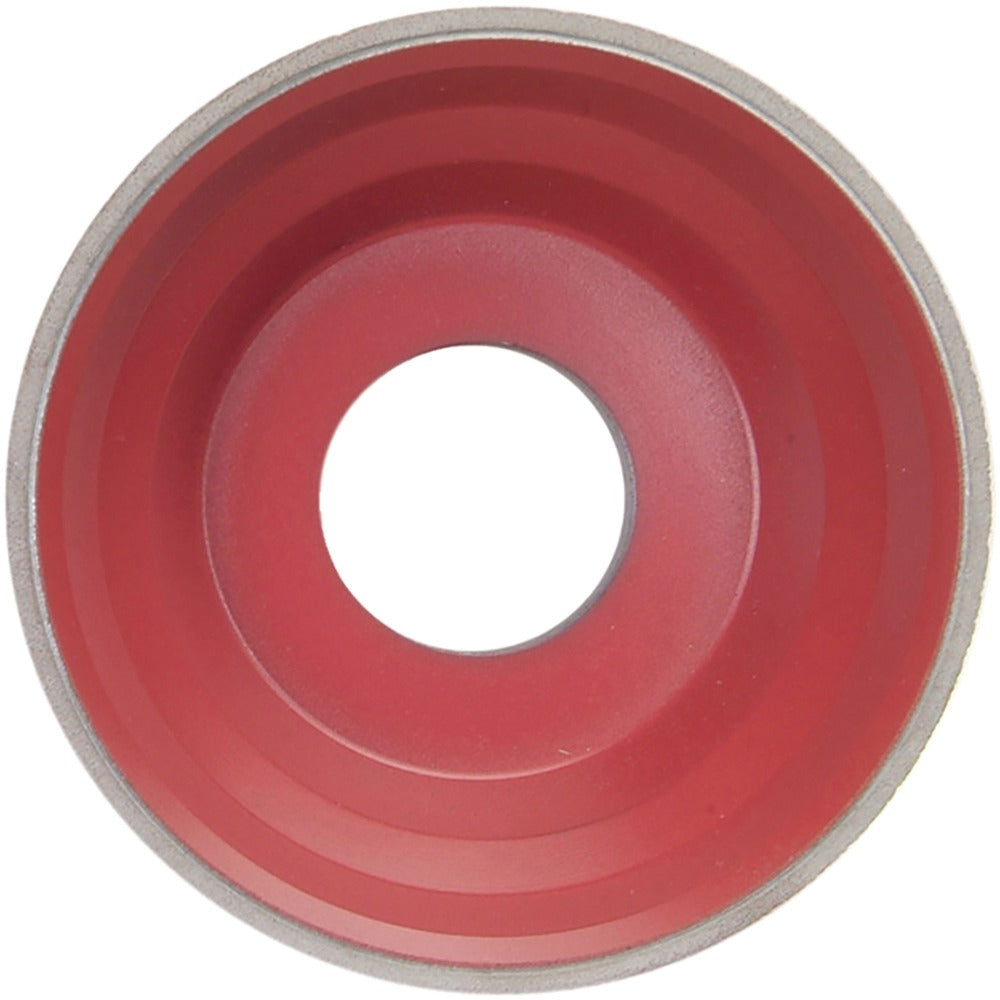

Norton 69014195680 Cbn Grinding Wheel 150 Grit Type 11V9

Product Description

The NORTON 69014195680 is a Type 11V9 cubic boron nitride (CBN) grinding wheel designed for precision tool grinding and sharpening applications. Built with a resinoid bond and 100 concentration CBN abrasive, this wheel delivers consistent stock removal on hardened steels and ferrous materials. At 150 grit, it falls in the very fine grade range, making it suited for finishing passes and edge refinement rather than aggressive roughing. The 70-degree face angle and 3/8-inch face width are specific to the Type 11V9 flaring cup geometry. Licensed grinding technicians and tool-and-die professionals are the primary installers and operators of this wheel.

This wheel is used in surface grinding, tool grinding, and cutter sharpening operations where a tight finish tolerance is required. The 3.75-inch diameter and 1.25-inch arbor hole suit bench grinders and pedestal tool grinders commonly found in machine shops, industrial maintenance departments, and precision grinding operations. It supports both wet and dry operation, giving operators flexibility depending on their coolant setup and the workpiece material being finished.

Key Features

• CBN abrasive with 100 concentration for long wheel life on hardened ferrous materials
• 150 grit very fine grade for finishing and edge-refinement passes
• Type 11V9 flaring cup geometry with 70-degree face angle
• Resinoid bond compatible with wet and dry grinding operations
• 1/8-inch superabrasive depth provides extended usable wheel life
• AZTEC .007-150-1/8 specification for standardized replacement reference

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for Type 11V9 flaring cup positions on bench and pedestal tool grinders accepting a 1.25-inch arbor hole and 3.75-inch wheel diameter.

Installation Notes

Grinding wheel mounting and dressing must be performed by qualified personnel following ANSI B11 and OSHA 29 CFR 1910.215 safety standards for abrasive wheel machinery. Always inspect the wheel for cracks or chips before mounting and perform a ring test on vitrified wheels — resinoid-bond wheels should be visually inspected per manufacturer guidelines. Power down and lock out the grinder before changing wheels. Never exceed the maximum RPM rating marked on the wheel or the grinder spindle speed, whichever is lower.
