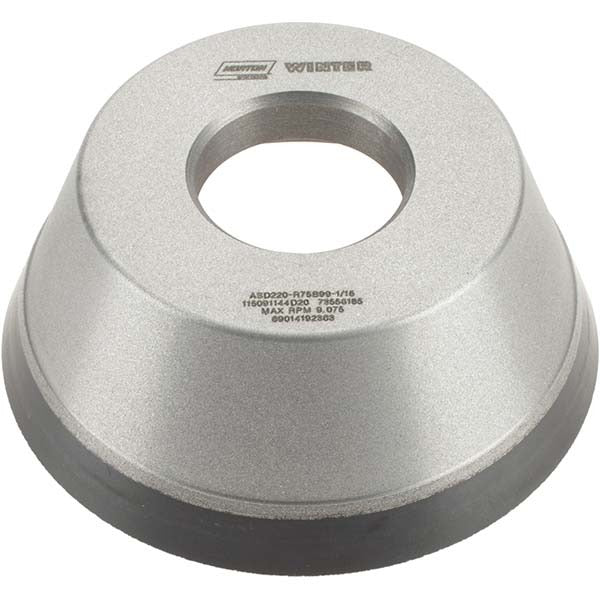

Norton 69014192363 Type 11V9 Diamond Grinding Wheel 220 Grit

Product Description

The NORTON 69014192363 is a Type 11V9 diamond grinding wheel designed for precision grinding applications on hard and superhard materials. Built with Armored Synthetic Diamond (ASD) abrasive and a resinoid bond, this wheel operates at 220 grit for very fine stock removal and surface finishing. It measures 3-3/4 inches in diameter with an overall thickness of 1-1/2 inches and accepts a 1-1/4 inch arbor hole. The resinoid bond and ASD abrasive combination supports both wet and dry operation, giving shops and field technicians flexibility depending on the application setup.

This wheel is suited for tool and cutter grinding, carbide tooling reconditioning, and finish grinding of ceramic or hard-metal components. The Type 11V9 dish geometry, with a 70-degree face angle and 3/8 inch face width, is standard for tool grinder applications in machine shops, carbide tool rooms, and production grinding environments. It is installed and operated by tool grinders and machinists working with bench or pedestal grinding equipment.

Key Features

• Armored Synthetic Diamond (ASD) abrasive — specification ASD220-R75B99-1/16
• Type 11V9 dish form with 70-degree face angle for tool and cutter grinding geometry
• 220 grit very fine grade for finish grinding and tight tolerance work
• Supports both wet and dry operation for application flexibility
• Resinoid bond provides consistent abrasive release and cool cutting action
• 1/16 inch superabrasive depth with 75 concentration for controlled, long-lasting performance

Compatibility

Designed as an OEM-style replacement or direct-fit wheel for Type 11V9 tool and cutter grinders accepting a 1-1/4 inch arbor hole and a 3-3/4 inch diameter dish wheel.

Installation Notes

This wheel is installed by machinists or tool grinders on compatible bench or pedestal grinding machines. Before mounting, power down and de-energize the grinder completely and inspect the wheel for cracks or chips. Follow ANSI B7.1 safety standards for mounting superabrasive wheels, including proper flange seating and arbor nut torque per the machine manufacturer specification. Do not exceed the wheel's rated operating speed.
