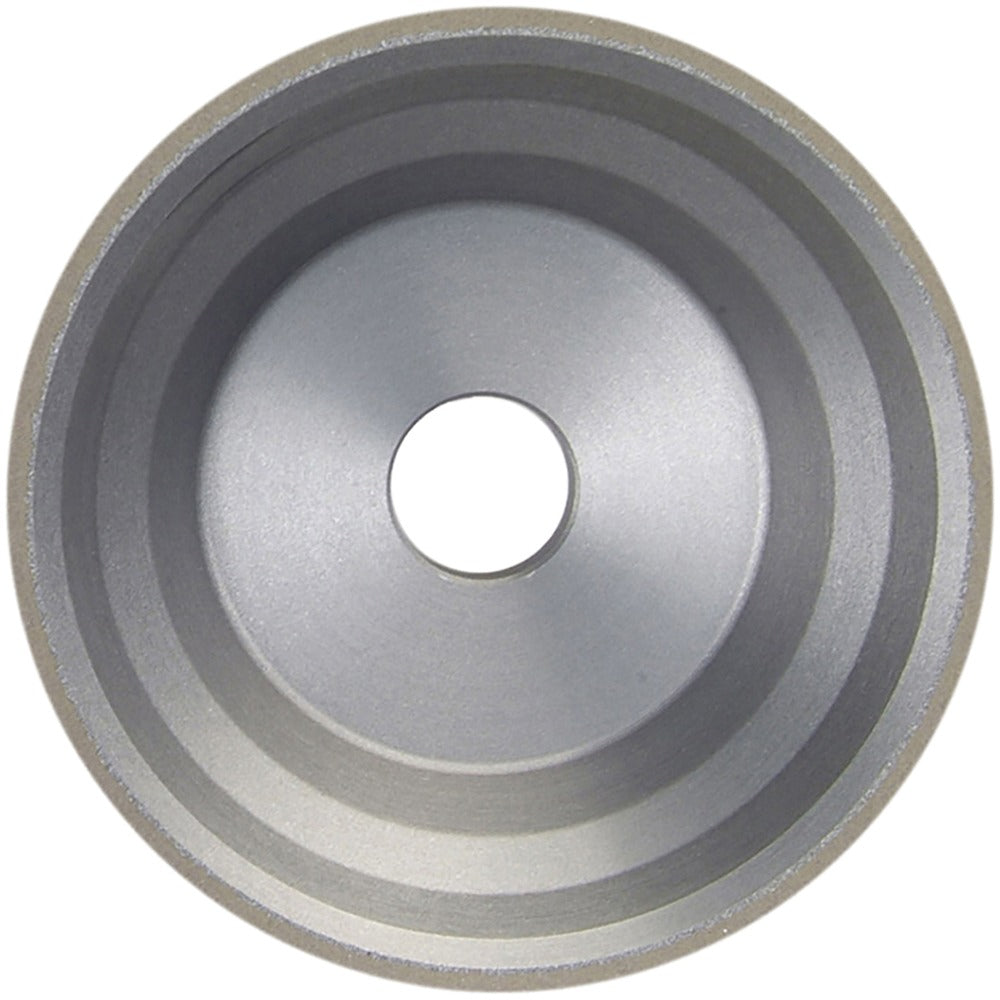

Norton 69014192292 Type 11V9 Diamond Grinding Wheel 150 Grit

Product Description

The NORTON 69014192292 is a Type 11V9 superabrasive diamond grinding wheel designed for precision grinding of hard and brittle materials. It uses Armored Synthetic Diamond (ASD) abrasive at 150 grit, a Very Fine grade, bonded with a resinoid bond and rated for both wet and dry operation. The wheel measures 3 inches in diameter with an overall thickness of 1.25 inches and a 0.75-inch hole size. A superabrasive depth of 0.0625 inches and face width of 0.375 inches deliver a controlled cutting surface suited to tight tolerance work. Machinists, tool and die technicians, and precision grinding professionals install and operate this wheel.

This wheel is suited for precision form grinding and tool sharpening applications where tight geometry control is required. The 70-degree face angle and Type 11V9 profile make it appropriate for grinding carbide tooling, ceramic components, and other superhard workpieces in both shop and production environments. It is compatible with wet grinding setups and can also run dry, giving the operator flexibility depending on the material and machine setup. Package quantity is one wheel per unit.

Key Features

• Armored Synthetic Diamond (ASD) abrasive at 150 grit Very Fine grade for precise material removal on hard substrates
• Type 11V9 profile with 70-degree face angle for form and tool grinding geometry
• Resinoid bond provides controlled cut rate and good surface finish on carbide and ceramics
• Rated for both wet and dry operation for setup flexibility
• Superabrasive concentration of 75 balances wheel life and cutting efficiency
• Superabrasive depth of 0.0625 inches with face width of 0.375 inches for consistent grinding contact

Compatibility

Designed as an OEM-style superabrasive replacement wheel for precision grinding machines accepting a 3-inch diameter, 0.75-inch hole Type 11V9 diamond wheel.

Installation Notes

Installation and dressing of superabrasive wheels should be performed by a qualified machinist or grinding technician. Power down and lock out the grinding machine before mounting or removing the wheel. Verify spindle speed does not exceed the maximum rated RPM marked on the wheel before operation. Follow ANSI B7.1 and machine manufacturer guidelines for proper flanging, mounting torque, and wheel inspection prior to use.
