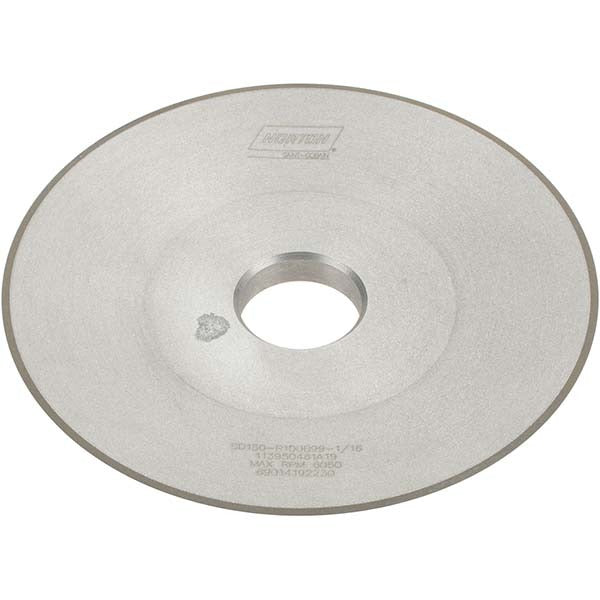

Norton 69014192230 Type 15V9 Diamond Grinding Wheel 150 Grit

Product Description

The NORTON 69014192230 is a Type 15V9 diamond grinding wheel designed for precision grinding of hard materials including carbide, ceramics, glass, and hardened tool steels. The wheel uses synthetic diamond (SD) abrasive bonded in a resinoid matrix at 100 concentration, delivering consistent stock removal and a very fine 150 grit finish. At 6 inches in diameter with a 1-1/4 inch bore and a 45-degree face angle, it mounts on standard tool and cutter grinders. Compatible with both wet and dry operation, it suits shops that run coolant or run dry depending on material requirements. Machinists, tool grinders, and precision grinding technicians are the primary installers and operators.

This wheel is suited for tool and cutter grinding applications in machine shops, carbide tool sharpening operations, and industrial grinding environments. The 45-degree face angle and 3/8 inch face width make it well matched for relief grinding on end mills, drills, and similar rotary cutting tools. The 1/16 inch superabrasive depth provides adequate wheel life for production and maintenance grinding. Its Type 15V9 profile is a recognized configuration in precision tool grinding, applicable to both light production runs and single-tool sharpening in a tool room setting.

Key Features

• Synthetic diamond abrasive at 100 concentration for consistent material removal on hard substrates
• 150 grit very fine grade produces smooth surface finishes on ground edges
• Resinoid bond offers good conformability and surface finish quality
• 45-degree face angle with 3/8 inch face width suits relief grinding on rotary cutting tools
• Wet and dry operation compatible for flexible shop use
• Type 15V9 profile is a standard configuration for tool and cutter grinder setups

Compatibility

Designed as an OEM-style replacement or standard fitment for tool and cutter grinders accepting a 6 inch diameter, 1-1/4 inch bore Type 15V9 diamond grinding wheel.

Installation Notes

Diamond grinding wheels of this type are mounted and dressed by qualified machinists or tool grinders following machine manufacturer guidelines and applicable ANSI B11 safety standards. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before each use and never exceed the rated operating speed marked on the wheel or its blotter. When running wet, verify coolant flow is established before engaging the wheel with the workpiece.
