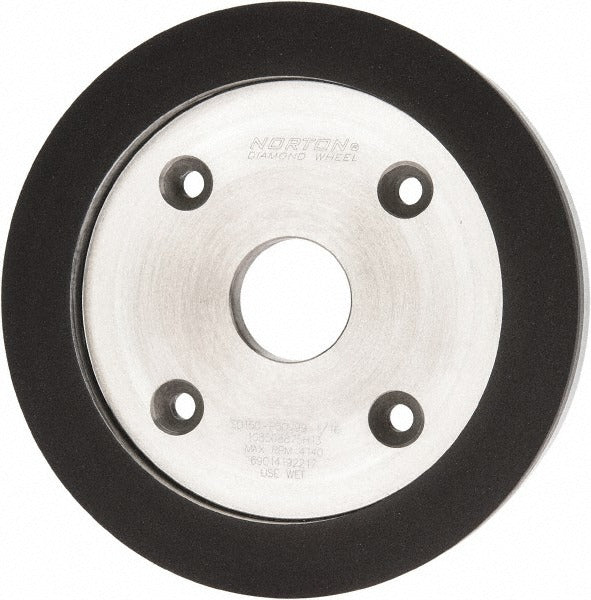

Norton 69014192217 Diamond Grinding Wheel 150 Grit

Product Description

The NORTON 69014192217 is a Type 6A2C diamond grinding wheel designed for precision grinding of hard and brittle materials including carbide, ceramics, and hardened tool steels. It features a synthetic diamond (SD) abrasive at 150 grit, classified as very fine grade, bonded with a vitrified bond for consistent material removal and controlled wear. At 6 inches in diameter with a 3/4-inch face width and 1/16-inch superabrasive depth, this wheel suits tool and cutter grinders as well as surface grinding applications where tight tolerances and fine finishes are required. Supports both wet and dry operation.

This wheel is suited for tool rooms, production grinding operations, and sharpening services working with carbide-tipped tools, ceramic components, and similar superhard workpiece materials. The vitrified bond provides open structure and good coolant flow, making it well matched for wet grinding setups while remaining functional in dry use. The 50 concentration superabrasive layer balances wheel life with cut rate, making it a practical choice for moderate-volume tool sharpening and precision surface work.

Key Features

• Type 6A2C wheel form for cup-style grinding and tool sharpening operations
• 150 grit synthetic diamond abrasive delivers a very fine surface finish
• Vitrified bond supports consistent cut rate and resistance to glazing
• Superabrasive concentration of 50 balances wheel life and material removal
• Wet and dry operation compatible
• 1/16-inch superabrasive depth with 3/4-inch face width for controlled contact

Compatibility

Designed as an OEM-style replacement or direct-use diamond grinding wheel for Type 6A2C-compatible tool and cutter grinding machines accepting a 6-inch diameter wheel with a 1-1/4-inch arbor hole.

Installation Notes

Diamond grinding wheels should be mounted and dressed by a qualified machinist or tool room technician. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before installation and never exceed the rated operating speed marked on the wheel. Follow ANSI B7.1 safety requirements for abrasive wheel mounting and operation.
