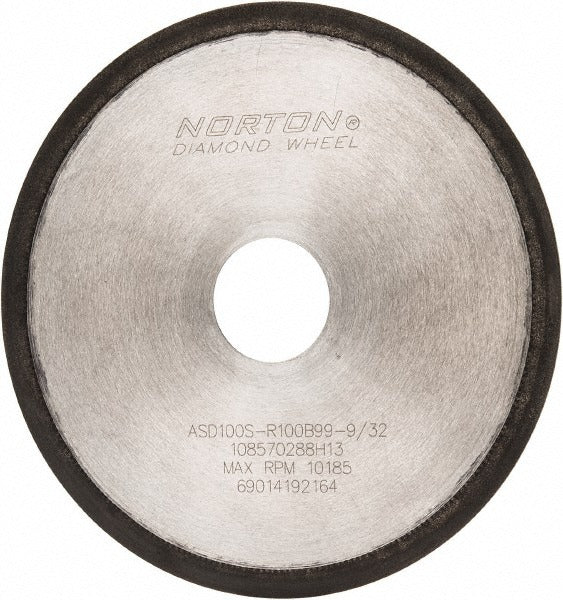

Norton 69014192164 Diamond Grinding Wheel 6in 100 Grit

Product Description

The NORTON 69014192164 is a Type 1A1R diamond surface grinding wheel designed for precision grinding applications across metalworking, toolroom, and industrial maintenance environments. Built with Armored Synthetic Diamond (ASD) abrasive and a resinoid bond, this wheel delivers consistent stock removal and profile integrity on hard, brittle materials. At 6 inches in diameter and just 0.035 inches thick, it is engineered for surface grinding operations where tight tolerances and controlled material removal are required. The 100 grit, coarse grade specification supports aggressive cutting action while the resinoid bond provides controlled wear and vibration dampening during operation.

This wheel is suited for surface grinding hard ferrous and non-ferrous materials, carbide tooling, ceramics, and other superabrasive-appropriate workpieces. The Type 1A1R form factor is standard for straight-face surface grinding on horizontal spindle machines. It fits machines with a 1-1/4 inch arbor hole and is appropriate for toolroom grinders, surface grinders, and precision grinding centers found in industrial shops and maintenance facilities. Installation and operation are performed by machinists, toolroom technicians, and grinding specialists.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for high-hardness material grinding
• Resinoid bond provides vibration dampening and controlled wheel wear
• Type 1A1R straight wheel form for horizontal spindle surface grinding
• 100 grit coarse grade for aggressive stock removal
• Superabrasive depth of 9/32 inches with 100 concentration for consistent abrasive exposure
• Thin 0.035 inch wheel thickness for precise, low-contact-force cutting

Compatibility

Designed as an OEM-style replacement or direct-fit surface grinding wheel for horizontal spindle surface grinders accepting a 6 inch diameter, 1-1/4 inch arbor hole, Type 1A1R straight wheel configuration.

Installation Notes

Surface grinding wheels must be installed and dressed by qualified machinists or grinding technicians following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before installation and perform a ring test per ANSI guidelines. Never exceed the wheel's rated maximum operating speed and ensure the machine spindle speed is confirmed compatible before operation.
