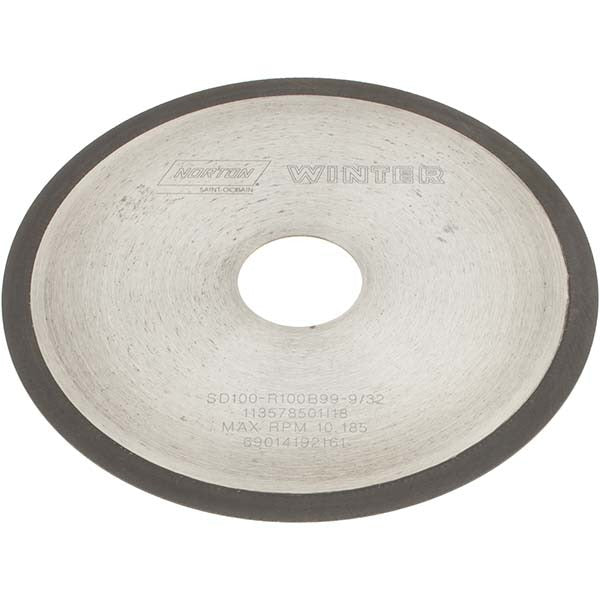

Norton 69014192161 Diamond Surface Grinding Wheel 6in 100G

Product Description

The NORTON 69014192161 is a Type 1A1R diamond surface grinding wheel designed for precision flat grinding applications in tool rooms, machine shops, and production environments. Measuring 6 inches in diameter with a 1-1/4 inch arbor hole and an ultra-thin 0.035 inch wheel thickness, this wheel delivers clean, controlled stock removal on hard and brittle materials. The synthetic diamond abrasive is bonded in a resinoid matrix at a concentration of 100, providing consistent cut and extended wheel life. A coarse 100 grit rating with an R hardness code makes it well suited for aggressive material removal passes on carbide, ceramic, and glass workpieces.

This wheel is intended for surface grinding operations on bench, pedestal, or surface grinding machines configured for Type 1A1R straight-wheel geometry. It is commonly installed by tool grinders, machining technicians, and maintenance professionals working with carbide tooling, technical ceramics, or hardened steel inserts. The 9/32 inch superabrasive depth provides meaningful wheel life before requiring dressing or replacement. Applications span both job-shop one-off grinding and light production runs requiring repeatable surface finish control.

Key Features

• Synthetic diamond abrasive at 100 concentration for consistent, aggressive material removal
• Type 1A1R straight wheel geometry compatible with standard surface grinding setups
• Ultra-thin 0.035 inch wheel thickness minimizes heat input and material waste
• Resinoid bond provides vibration damping and smooth grinding action
• 9/32 inch superabrasive depth delivers extended usable wheel life
• Coarse 100 grit rated for high stock removal on hard and brittle materials

Compatibility

Designed as an OEM-style replacement or direct-fit diamond grinding wheel for surface grinding machines accepting a 6 inch diameter, 1-1/4 inch hole, Type 1A1R straight wheel configuration.

Installation Notes

Grinding wheel mounting should be performed by a qualified operator following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Before mounting, power down the grinder completely and verify the machine spindle speed rating meets or exceeds the wheel's maximum operating speed. Perform a ring test before installation and use proper blotter flanges to ensure even clamping pressure. Never force a wheel onto a spindle or alter the arbor hole.
