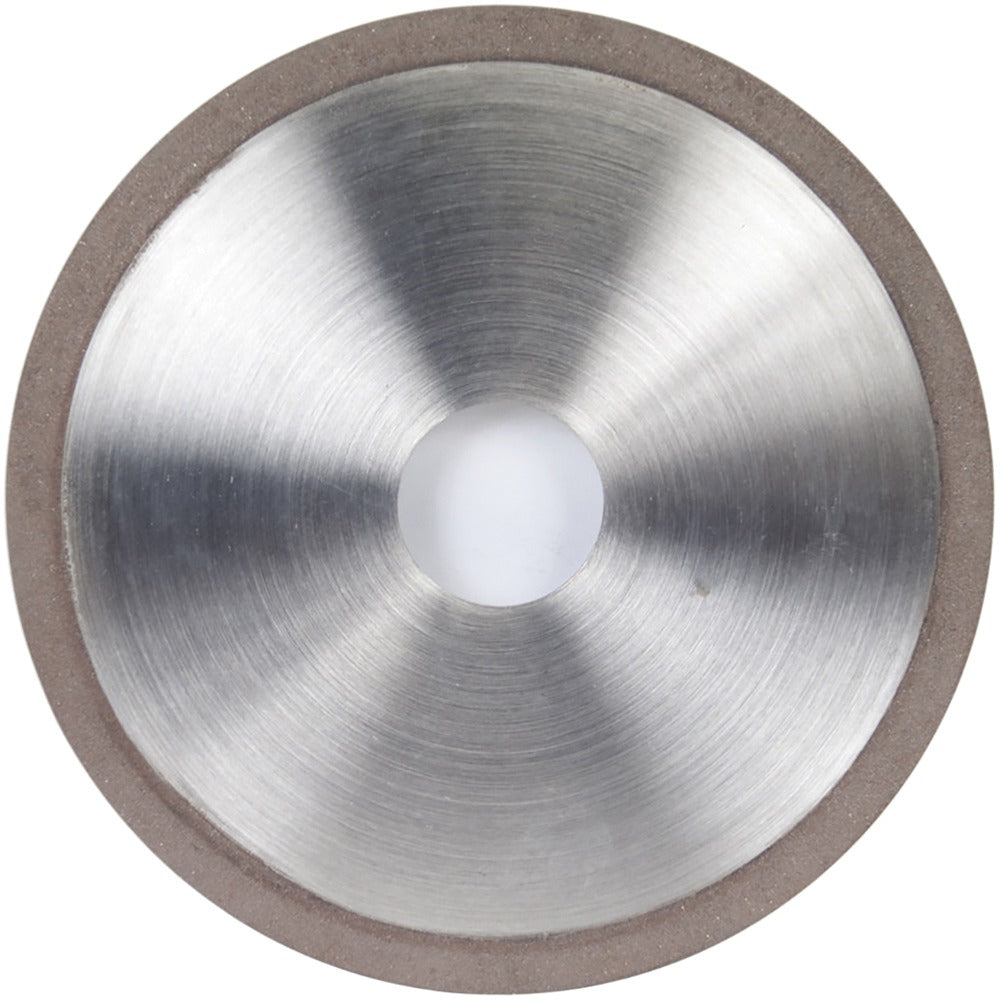

Norton 69014192156 Diamond Cut-off Wheel 6 in 100 Grit

Product Description

The NORTON 69014192156 is a Type 1A1R diamond cut-off wheel engineered for precision cutting of hard and brittle materials. Built with a synthetic diamond abrasive at 100 grit and a resinoid bond, it delivers consistent, controlled cuts with a coarse grade action suited to demanding applications. At 6 inches in diameter and 0.035 inches thick, the wheel is designed for use on angle grinders and cut-off machines equipped with a 1-1/4-inch arbor. With a superabrasive depth of 1/4 inch and a concentration rating of 100, the wheel maintains cutting performance throughout its service life. Typical users include tile setters, masons, concrete finishers, and fabricators working with ceramics, glass, stone, or similar hard substrates.

This wheel is appropriate for dry or wet cutting applications involving hard and brittle materials such as ceramic tile, porcelain, natural stone, glass, and similar substrates. Its Type 1A1R straight profile makes it a standard choice for chop saws, stationary cut-off machines, and angle grinders set up for precision work. The 6-inch diameter fits a broad range of benchtop and handheld equipment commonly used in tile, masonry, and fabrication trades. This is a single-wheel unit sold individually.

Key Features

• Synthetic diamond abrasive for cutting hard and brittle materials
• 100 grit coarse grade for efficient material removal
• Resinoid bond with hardness code R for controlled wear rate
• Superabrasive depth of 1/4 inch for extended wheel life
• Superabrasive concentration of 100 for consistent cut performance
• Type 1A1R straight wheel profile fits standard cut-off machine setups

Compatibility

Designed for use on cut-off machines and angle grinders with a 1-1/4-inch arbor hole accepting a 6-inch Type 1A1R straight cut-off wheel.

Installation Notes

Installation and wheel changes must be performed by qualified personnel following ANSI B7.1 safety standards for abrasive wheels. Power down and disconnect the machine before mounting or removing any wheel. Inspect the wheel for cracks or chips before mounting, and never exceed the rated maximum operating speed marked on the wheel. Ensure the arbor size and machine guarding are compatible before operating.
