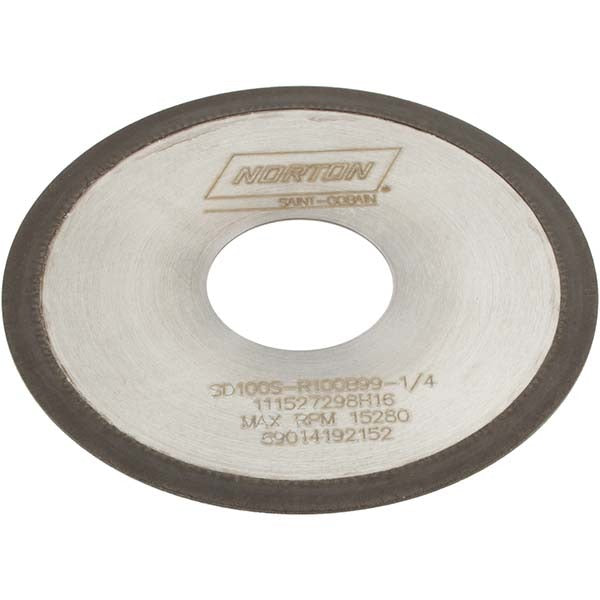

Norton 69014192152 Diamond Surface Grinding Wheel 100 Grit

Product Description

The NORTON 69014192152 is a Type 1A1R diamond surface grinding wheel designed for precision surface grinding applications requiring fine material removal on hard or brittle workpiece materials. Built with a resinoid bond and synthetic diamond abrasive at 100 grit coarse grade, this wheel delivers aggressive stock removal with consistent cutting action. The wheel measures 4 inches in diameter and 1/32 inch thick, with a 1-1/4 inch arbor hole. The superabrasive depth is 1/4 inch with a superabrasive concentration of 100. Licensed machinists, toolroom grinders, and shop technicians are the typical installers of this wheel.

This diamond grinding wheel is suited for surface grinding operations on carbide tooling, ceramics, glass, and other hard or brittle materials where conventional abrasive wheels lose effectiveness. The thin 1/32 inch profile makes it appropriate for slotting, cutoff, and thin-section surface grinding tasks. It is used in both production and toolroom environments on surface grinders with compatible spindle configurations accepting a 1-1/4 inch arbor bore.

Key Features

• Type 1A1R wheel form for surface and cutoff grinding operations
• Synthetic diamond abrasive (SD) for cutting hard and brittle materials
• 100 grit coarse grade for aggressive stock removal
• Resinoid bond with R hardness rating for controlled wheel wear
• Superabrasive depth of 1/4 inch and concentration of 100 for consistent diamond exposure
• 1/32 inch thin profile suited to slotting and thin-section grinding

Compatibility

Designed as an OEM-style replacement or direct-fit surface grinding wheel for surface grinders accepting a 4 inch diameter, 1/32 inch thick, Type 1A1R wheel with a 1-1/4 inch arbor hole.

Installation Notes

Diamond grinding wheels must be installed and dressed by qualified machinists or toolroom personnel. Power down and lockout the grinder spindle before mounting or removing any wheel. Inspect the wheel for cracks or damage before installation and never exceed the rated maximum RPM marked on the wheel. Follow ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels.
