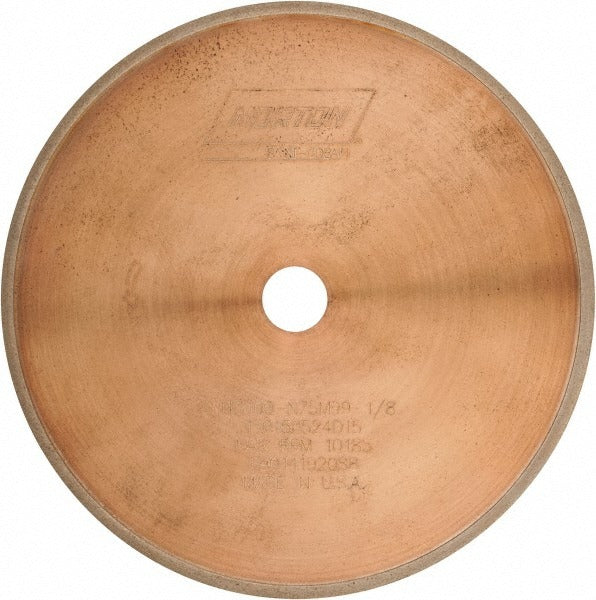

Norton 69014192088 Diamond Surface Grinding Wheel 6 in 100G

Product Description

The NORTON 69014192088 is a Type 1A1R diamond surface grinding wheel designed for precision surface grinding applications. Built with Armored Synthetic Diamond (ASD) abrasive and a metal bond, this wheel delivers consistent stock removal on hard and superhard workpiece materials. The wheel measures 6 inches in diameter with a 0.035-inch thickness and a 5/8-inch arbor hole. At 100 grit with a Coarse grade and Medium hardness (Hardness Code N), it is suited for aggressive material removal while maintaining dimensional control. The 1/8-inch superabrasive depth and 75 concentration rating (Specification M4D100-N75M99-1/8) reflect an industrial-grade construction intended for production and toolroom environments.

This wheel is used in surface grinding operations on hard materials such as carbide, ceramics, glass, and hardened steel. The Type 1A1R form factor is a standard straight wheel profile common on horizontal-spindle surface grinders in both job shop and production settings. Licensed machinists, tool-and-die makers, and grinding specialists are the primary installers and operators. The 6-inch diameter and 5/8-inch hole size fit a wide range of bench and surface grinder spindle configurations.

Key Features

• Type 1A1R straight wheel profile for horizontal-spindle surface grinders
• Armored Synthetic Diamond (ASD) abrasive for grinding carbide, ceramics, and hardened materials
• Metal bond construction for durability and form retention under aggressive grinding conditions
• 100 grit Coarse grade with Medium hardness (Code N) for high stock-removal rates
• 1/8-inch superabrasive depth at 75 concentration for extended wheel life
• Specification M4D100-N75M99-1/8 for traceability to Norton diamond wheel standards

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for horizontal-spindle surface grinders accepting a 6-inch diameter, 5/8-inch arbor hole, Type 1A1R straight wheel.

Installation Notes

Diamond grinding wheels should be mounted and dressed only by qualified machinists or grinding specialists familiar with superabrasive wheel handling. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before installation and never exceed the rated RPM marked on the wheel or its packaging. Follow ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels.
