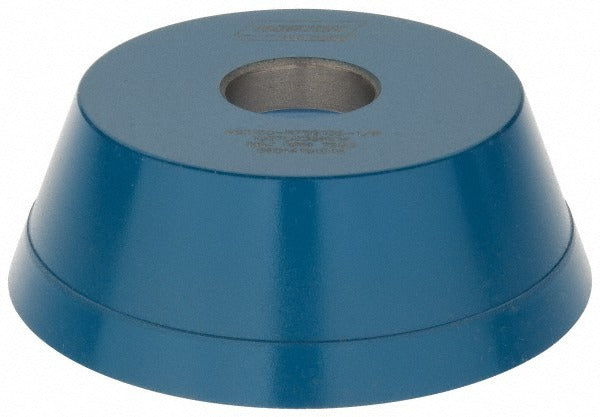

Norton 69014191918 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191918 is a Type 11V9 diamond grinding wheel designed for precision tool and cutter grinding applications. Built with Armored Synthetic Diamond (ASD) abrasive at 150 grit, it delivers a very fine finish on carbide, ceramic, and hard tool materials. The resinoid bond provides controlled cut action with consistent stock removal. At 5 inches in diameter and 1-3/4 inches overall thickness, this wheel supports both wet and dry operation, giving shops flexibility based on their grinding setup. Licensed HVAC technicians, machinists, and tool room professionals who service or sharpen cutting tools will find this wheel suited to high-precision re-sharpening tasks.

This wheel is intended for use on bench or pedestal tool and cutter grinders. The Type 11V9 flared cup configuration and 70-degree face angle make it well matched for relief grinding on milling cutters, drills, reamers, and similar tooling. The 1/4-inch-wide superabrasive depth and 7/16-inch face width concentrate the diamond section where material removal occurs. Wet or dry operation is supported, making it adaptable to both production and maintenance grinding environments. Package quantity is one wheel per unit.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for long wheel life on hard materials
• 150 grit very fine grade for precision finish grinding
• Resinoid bond provides consistent cut rate and surface finish control
• Type 11V9 flared cup form with 70-degree face angle for relief and clearance grinding
• Supports wet and dry operation for shop flexibility
• Superabrasive concentration rated at 75 for balanced performance and economy

Compatibility

Designed as an OEM-style replacement or standard-fit wheel for tool and cutter grinders accepting a 5-inch diameter, 1-1/4-inch arbor hole, Type 11V9 cup wheel configuration.

Installation Notes

Installation of grinding wheels must be performed by a qualified operator in accordance with ANSI B11.9 and the grinder manufacturer's guidelines. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation and perform a ring test per ANSI standards. Never exceed the maximum operating speed marked on the wheel or machine.
