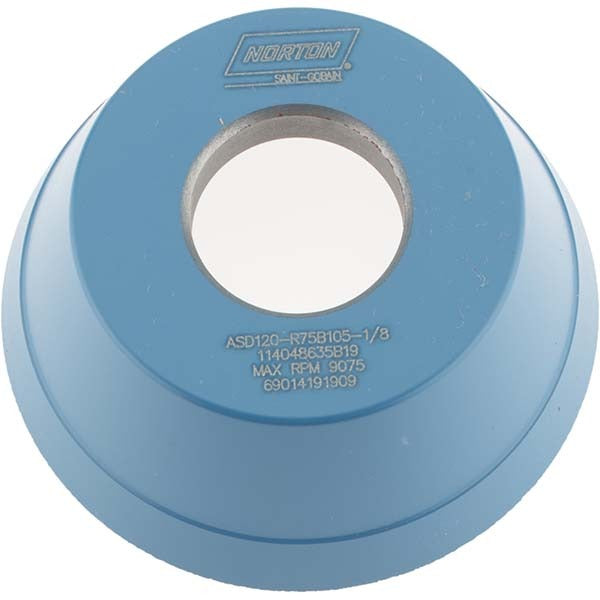

Norton 69014191909 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191909 is a Type 11V9 superabrasive diamond grinding wheel engineered for precision grinding of hard and brittle materials. Built with Armored Synthetic Diamond (ASD) abrasive at 120 grit and Fine grade, this wheel delivers consistent, controlled stock removal on carbide tooling, ceramics, and similar hard substrates. The resinoid bond provides a degree of resilience that helps maintain surface finish quality throughout the cut. At 3-3/4 inches in diameter with a 1-1/4 inch hole size and an overall thickness of 1-1/2 inches, this wheel fits standard tool and cutter grinders used in machine shops and tool rooms. It is rated for both wet and dry operation.

This wheel is suited to professional tool and cutter grinding operations where dimensional accuracy and surface finish are critical. The 70-degree face angle and 3/8 inch face width make it appropriate for sharpening and reconditioning carbide-tipped cutting tools, end mills, drills, and similar tooling. The 1/8 inch superabrasive depth and 75 concentration rating support productive material removal while extending wheel life. Licensed machine tool operators and tool grinder technicians are the primary installers and operators of this wheel.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding of carbide and hard materials
• 120 grit, Fine grade for controlled stock removal and finish quality
• Type 11V9 form with 70-degree face angle and 3/8 inch face width
• Resinoid bond supports wet and dry grinding operation
• 75 superabrasive concentration for balanced cut rate and wheel life
• ASD120-R75B105-1/8 specification for precise application matching

Compatibility

Designed as an OEM-style replacement or direct-fit wheel for Type 11V9 tool and cutter grinders accepting a 3-3/4 inch diameter wheel with a 1-1/4 inch arbor hole.

Installation Notes

Mounting and dressing of superabrasive grinding wheels should be performed by qualified machine tool operators or tool grinder technicians following the machine manufacturer's instructions and applicable ANSI B11 safety standards. Always power down and de-energize the grinder before mounting or removing the wheel. Inspect the wheel for visible damage before installation and never exceed the maximum operating speed marked on the wheel or machine. Use appropriate coolant when operating in wet mode and ensure proper guarding is in place before starting the machine.
