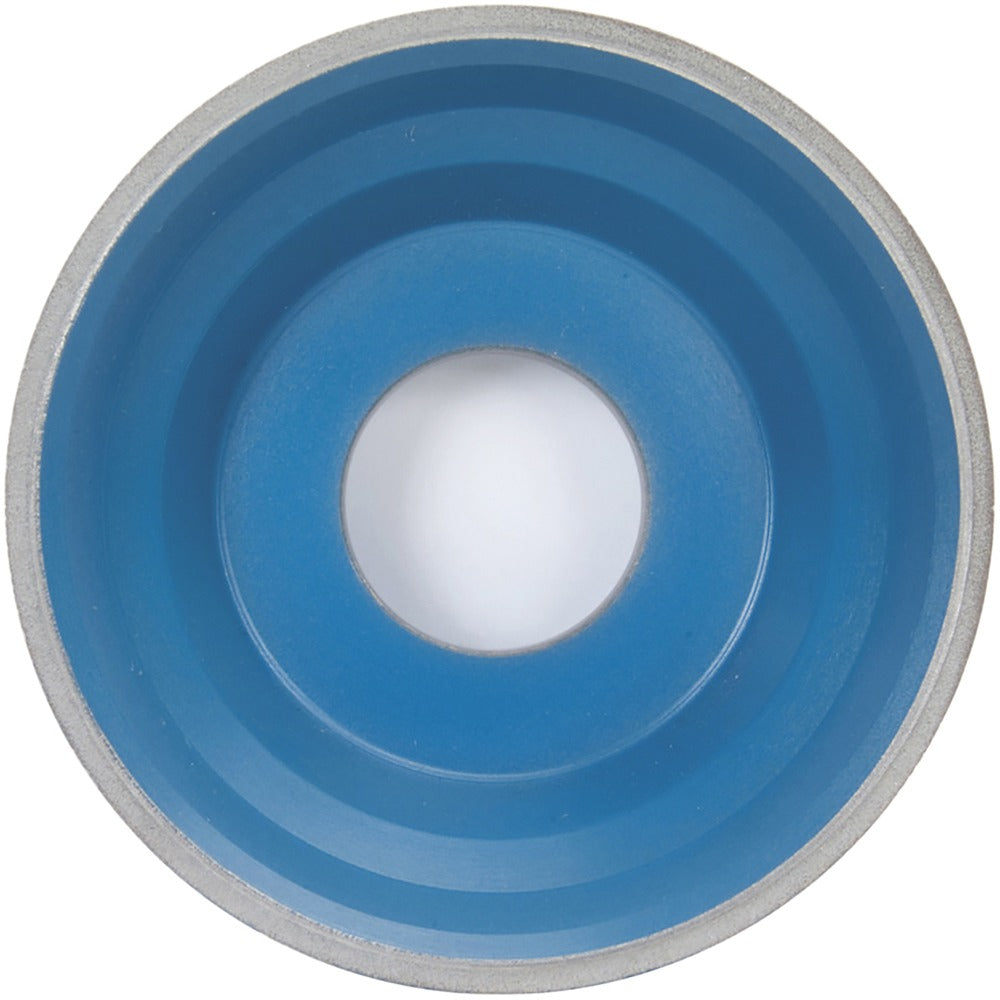

Norton 69014191905 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191905 is a Type 11V9 diamond grinding wheel designed for precision grinding applications on hard and superhard materials. Built with Armored Synthetic Diamond (ASD) abrasive at 120 grit and a resinoid bond, this wheel delivers consistent fine-grade stock removal with controlled surface finish. The wheel measures 3-3/4 inches in diameter with a 1-1/2-inch overall thickness and a 1-1/4-inch hole size. Its 70-degree face angle and 3/8-inch face width make it well suited for contour and form grinding tasks. Licensed trades and toolroom machinists are the primary installers of this wheel type.

This wheel is used in wet or dry grinding operations on carbide tooling, ceramics, glass, and other hard materials. The ASD120-R75B105-1/16 specification indicates R-grade hardness, 75 superabrasive concentration, and a 1/16-inch superabrasive depth. The resinoid bond performs well in both wet and dry conditions, making it flexible for use on bench grinders, tool-and-cutter grinders, and surface grinders where a Type 11V9 profile is required. Typical applications include sharpening carbide cutting tools and grinding hard ceramic or glass components in tool-and-die or maintenance shops.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding hard and superhard materials
• 120 grit, fine grade for controlled material removal and smooth surface finish
• Type 11V9 profile with 70-degree face angle suits contour and tool-sharpening applications
• Resinoid bond supports both wet and dry operation
• 1/16-inch superabrasive depth and 75 concentration rating for consistent wheel life
• Hub diameter of 2-21/32 inches provides stable mounting on compatible spindle arbors

Compatibility

Designed as an OEM-style replacement or direct-fit wheel for tool-and-cutter grinders and bench grinders that accept a Type 11V9 wheel with a 1-1/4-inch hole and 3-3/4-inch diameter.

Installation Notes

Installation of grinding wheels must be performed by a qualified operator following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before mounting and always perform a ring test. Do not exceed the maximum operating speed marked on the wheel or packaging.
