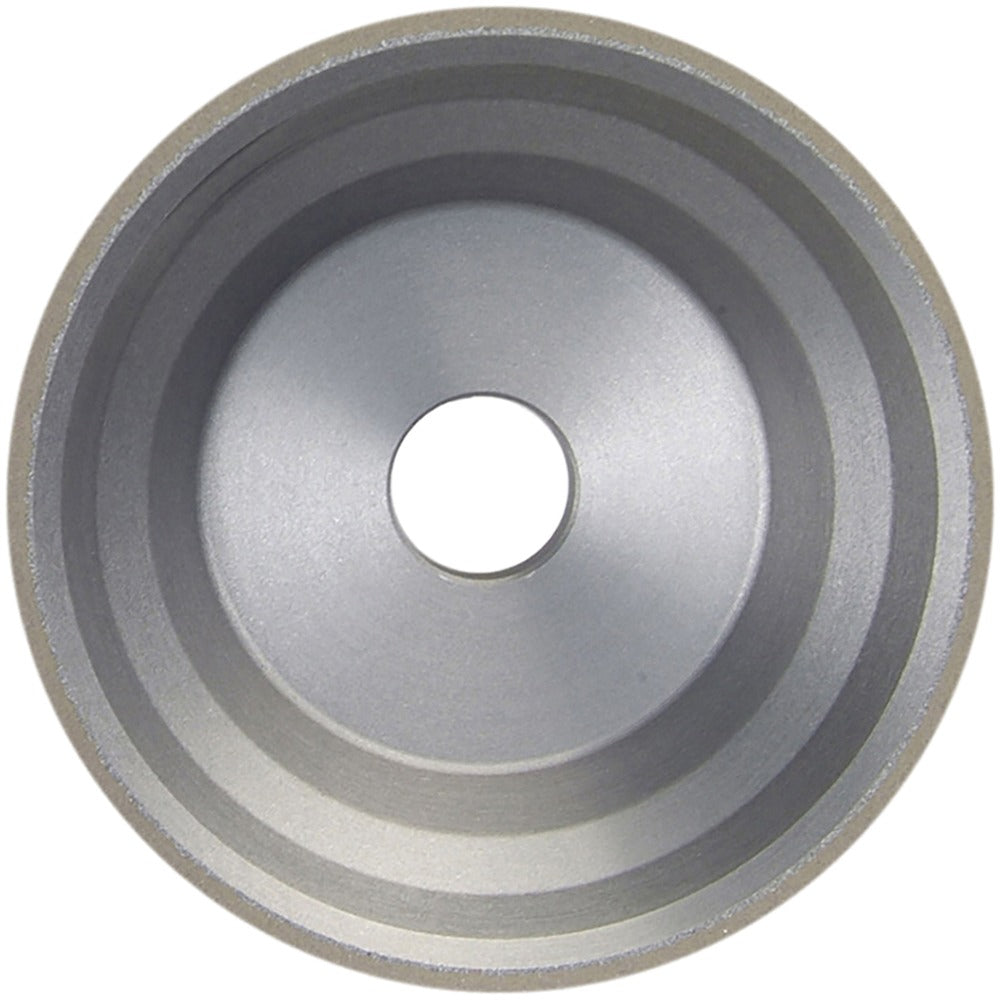

Norton 69014191723 Cbn Grinding Wheel 3-3/4 in Type 11V9 120 Grit

Product Description

The NORTON 69014191723 is a Type 11V9 cubic boron nitride (CBN) grinding wheel designed for precision tool grinding applications. Built with a resinoid bond and a CBN concentration of 75, this wheel delivers consistent stock removal and long service life on hardened ferrous materials. At 3-3/4 inches in diameter with a 120-grit fine grade, it is suited for operators who need controlled, accurate surface finishes on cutting tool edges. The wheel supports both wet and dry operation, giving the user flexibility depending on setup. It is intended for installation on bench grinders, tool-and-cutter grinders, and similar stationary grinding equipment.

This wheel is used in tool room and maintenance shop environments where cutting tools require resharpening or form grinding. The Type 11V9 flared-cup geometry and 70-degree face angle make it well-suited for grinding clearance angles on drills, end mills, and similar tooling. The 3/8-inch face width and 1/8-inch superabrasive depth provide a defined working surface. Both professional tool grinders and skilled trades professionals maintaining their own tooling will find this wheel appropriate for that work.

Key Features

• Cubic boron nitride (CBN) abrasive for long wheel life on hardened ferrous steels
• Type 11V9 flared-cup form with 70-degree face angle for clearance and relief grinding
• 120 grit fine grade produces controlled, accurate surface finishes
• Resinoid bond supports wet and dry operation
• CBN concentration of 75 balances cut rate with wheel longevity
• 1/8-inch superabrasive depth and 3/8-inch face width define a precise grinding zone

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for bench-mounted and pedestal tool-and-cutter grinders accepting a 1-1/4-inch hole arbor and a 3-3/4-inch diameter Type 11V9 wheel.

Installation Notes

Installation should be performed by a qualified tool room operator or trades professional familiar with abrasive wheel safety. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and confirm the spindle speed rating of the machine does not exceed the maximum rated speed of the wheel. Follow ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels.
