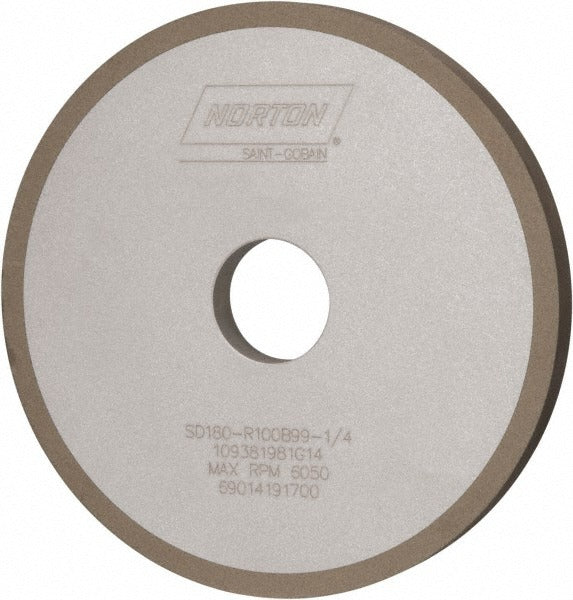

Norton 69014191700 Surface Grinding Wheel 180 Grit

Product Description

The NORTON 69014191700 is a Type 1A1 diamond surface grinding wheel engineered for precision finishing applications. It carries a 180-grit, very fine grade synthetic diamond abrasive bonded with a resinoid bond system, making it well-suited for controlled material removal and surface finish improvement on hard or brittle workpieces. The wheel measures 6 inches in diameter, 0.5 inches thick, and accepts a 1.25-inch arbor bore. With a superabrasive depth of 0.25 inches and a 100 concentration of synthetic diamond (SD), it delivers consistent cutting action across the full working depth. Wet operation is recommended to maximize wheel life and maintain workpiece integrity.

This wheel is intended for surface grinding operations where finish quality is the primary objective. It is a fit for tool rooms, carbide tooling reconditioning, ceramics, glass, and other hard-material grinding tasks encountered in industrial and shop environments. The resinoid bond provides a degree of compliance that helps produce fine surface finishes. Grinding machine operators and tooling specialists working with surface grinders in production or maintenance settings are the typical end users of this wheel type.

Key Features

• Type 1A1 straight wheel profile with no recess and no taper for straightforward surface grinding setups
• 180-grit synthetic diamond abrasive rated very fine grade for finish improvement applications
• Resinoid bond with soft hardness rating (R) delivers controlled, consistent cutting action
• 100 superabrasive concentration for uniform diamond distribution across the working layer
• 0.25-inch superabrasive depth provides extended usable wheel life
• Wet operation design supports heat dissipation and workpiece surface quality

Compatibility

Designed as an OEM-style replacement or direct-fit option for surface grinders accepting a 6-inch diameter, 1.25-inch bore Type 1A1 wheel. Specification designation SD180-R100B99-1/4 applies to this wheel as stated by the manufacturer.

Installation Notes

Wheel mounting should be performed by a qualified operator following ANSI B7.1 safety standards for abrasive wheel use. Always inspect the wheel for cracks or damage before mounting and perform a ring test where applicable. Power down and lock out the grinder before installing or removing the wheel. Do not exceed the wheel's rated maximum operating speed, and ensure coolant flow is established before beginning wet grinding operations.
