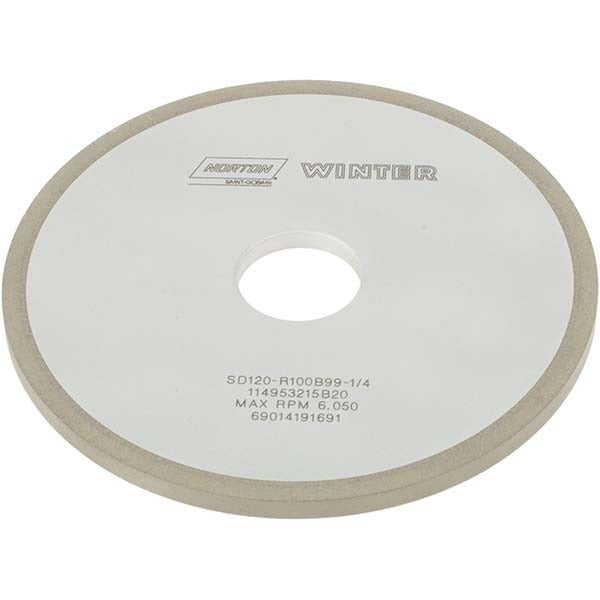

Norton 69014191691 Surface Grinding Wheel 120 Grit 6in

Product Description

The NORTON 69014191691 is a Type 1A1 diamond surface grinding wheel designed for precision surface grinding applications in metalworking and fabrication shops. Built with a synthetic diamond (SD) abrasive and a resinoid bond, it delivers consistent stock removal during roughing and cut-off operations. The wheel measures 6 inches in diameter with a 1/4 inch thickness and a 1-1/4 inch arbor hole. At 120 grit with a fine grade and soft hardness rating (R), it is suited for controlled material removal where surface finish consistency matters. This wheel supports both wet and dry operation, giving the operator flexibility based on the machine setup and material being ground.

This grinding wheel is intended for use on surface grinding machines in industrial, manufacturing, and job shop environments. It is appropriate for applications involving roughing and cut-off work on hard or brittle materials where diamond abrasive outperforms conventional aluminum oxide or silicon carbide wheels. Licensed machinists, tool and die makers, and skilled grinding operators are the primary installers and users of this type of consumable abrasive tooling.

Key Features

• Synthetic diamond (SD) abrasive for superior hardness and wear resistance on difficult materials
• Resinoid bond provides good shock absorption and consistent performance in wet or dry operation
• 120 grit fine grade delivers controlled material removal with a smooth surface finish
• Soft hardness rating (R) helps prevent glazing and promotes consistent cut action
• No recess, no taper design simplifies mounting and reduces setup time
• 100 percent superabrasive concentration (SD120-R100B99-1/4) for uniform abrasive distribution throughout the wheel

Compatibility

Designed as an OEM-style replacement or direct-fit consumable for surface grinding machines accepting a Type 1A1 straight wheel with a 6 inch diameter, 1/4 inch thickness, and 1-1/4 inch arbor hole.

Installation Notes

This wheel should be installed and dressed by a qualified machinist or grinding operator following machine manufacturer guidelines and ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before each use and perform a ring test as required. Never exceed the maximum operating speed marked on the wheel or machine.
