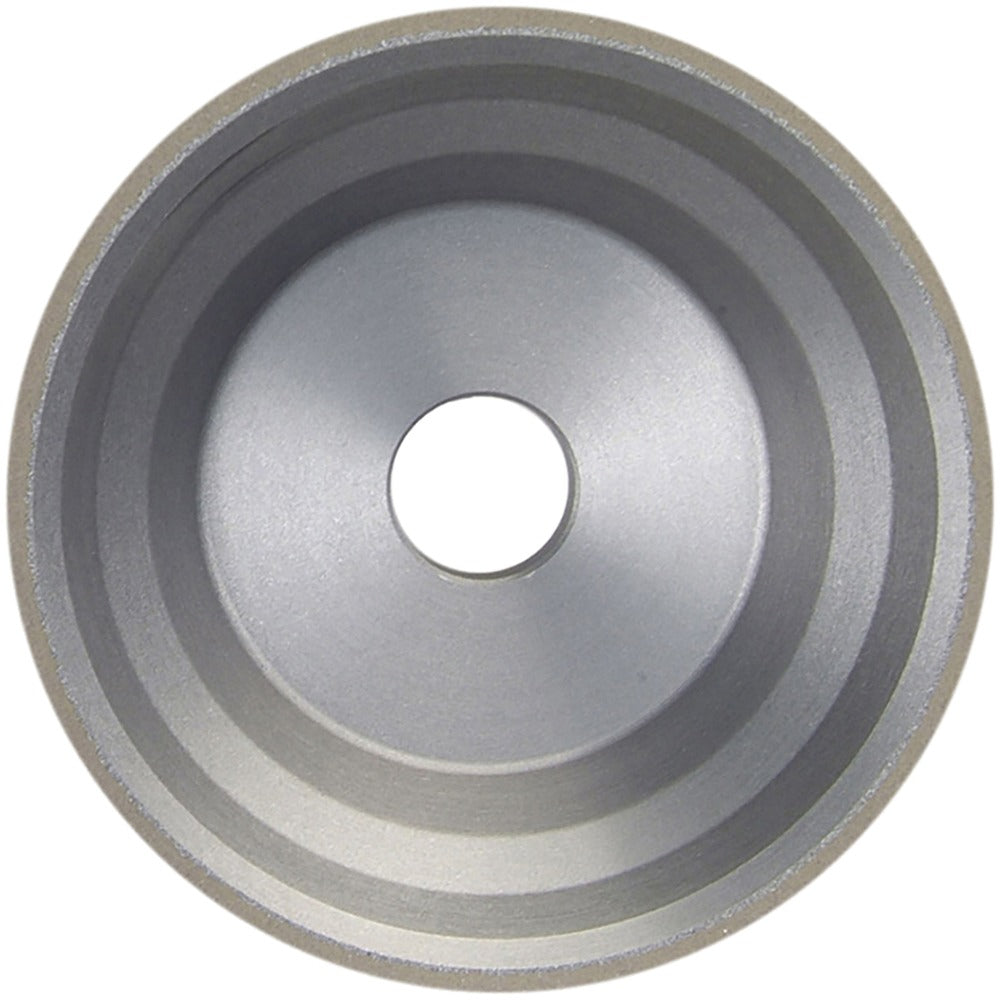

Norton 69014191653 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191653 is a Type 11V9 resinoid-bond diamond grinding wheel designed for precision grinding of hard and superhard materials. Measuring 3-3/4 inches in diameter with an overall thickness of 1-1/2 inches, this wheel features Armored Synthetic Diamond (ASD) abrasive at 100 grit, Fine grade, and a superabrasive concentration of 75. It is engineered for both wet and dry operation, making it suitable for a range of controlled material-removal tasks on carbide, ceramic, glass, and similar hard substrates. Tool and cutter grinder operators and precision grinding technicians are the primary users of this wheel.

This wheel is intended for use on tool and cutter grinders, surface grinders equipped with the appropriate spindle, and bench grinders configured for superabrasive wheels. The Type 11V9 flared-cup geometry with a 70-degree face angle and a 3/8-inch face width is well-suited for sharpening and reconditioning carbide tooling, ceramic inserts, and other hard materials found in industrial and trade shop environments. The ASD100S-R75B99-1/8 specification identifies the abrasive type, grit, grade, bond, concentration, and superabrasive depth for precise application matching.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for extended wheel life on hard and superhard materials
• Type 11V9 flared-cup form with a 70-degree face angle optimized for tool and cutter sharpening
• 100 grit, Fine grade for controlled stock removal and smooth surface finish
• Resinoid bond provides a balance of holding strength and controlled wear rate
• Compatible with both wet and dry grinding operations
• Superabrasive depth of 1/8 inch with a face width of 3/8 inch for concentrated cutting at the wheel face

Compatibility

Designed as an OEM-style superabrasive replacement wheel for tool and cutter grinders and precision grinding machines accepting a 3-3/4-inch diameter, Type 11V9 cup wheel with a 1-1/4-inch hole and a 2-21/32-inch hub diameter.

Installation Notes

Installation should be performed by a qualified tool grinder operator or machinist familiar with superabrasive wheel mounting procedures. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before installation and never exceed the rated speed marked on the wheel or machine. Follow ANSI B11 and applicable shop safety standards when dressing, mounting, and operating diamond grinding wheels.
