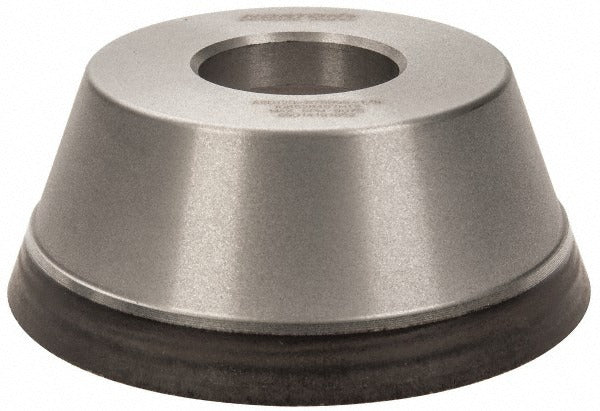

Norton 69014191652 Type 11V9 Diamond Grinding Wheel 120

Product Description

The NORTON 69014191652 is a Type 11V9 diamond grinding wheel designed for precision grinding of hard and superhard materials. Constructed with Armored Synthetic Diamond (ASD) abrasive and a resinoid bond, it operates at 120 grit for fine-grade stock removal and surface refinement. The wheel measures 3.75 inches in diameter with a 1.5-inch overall thickness and accepts a 1.25-inch arbor hole. It supports both wet and dry operation, making it adaptable to a range of bench and surface grinding setups. Toolroom machinists, carbide grinders, and metalworking professionals use this wheel for controlled, consistent material removal on carbide tooling, ceramics, and similar substrates.

This wheel is suited for wet or dry grinding applications in toolroom, maintenance, and production environments. Its Type 11V9 form factor is commonly used on bench grinders and dedicated tool grinders when working with carbide, cermet, and other superhard materials. The 70-degree face angle and 0.375-inch face width allow for precise edge work and profile grinding. The 0.125-inch superabrasive depth provides adequate service life for repetitive tool sharpening and reconditioning tasks.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding carbide and superhard materials
• Resinoid bond offers consistent cut and good wheel life in both wet and dry use
• 120 grit fine grade delivers smooth surface finish and controlled stock removal
• Type 11V9 form with 70-degree face angle suited for tool and cutter grinding
• Supports wet and dry operation for flexible shop use
• ASD120-R75B99 specification with 75 superabrasive concentration and 0.125-inch superabrasive depth

Compatibility

Designed as an OEM-style replacement or direct-fit grinding wheel for bench grinders and tool grinders accepting a 1.25-inch arbor hole and Type 11V9 cup wheel geometry.

Installation Notes

This wheel should be installed and dressed by a qualified toolroom machinist or grinding technician. Always power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before each use and never exceed the rated operating speed marked on the wheel. When operating dry, ensure adequate ventilation and use appropriate respiratory protection per OSHA and ANSI B11.9 guidelines.
