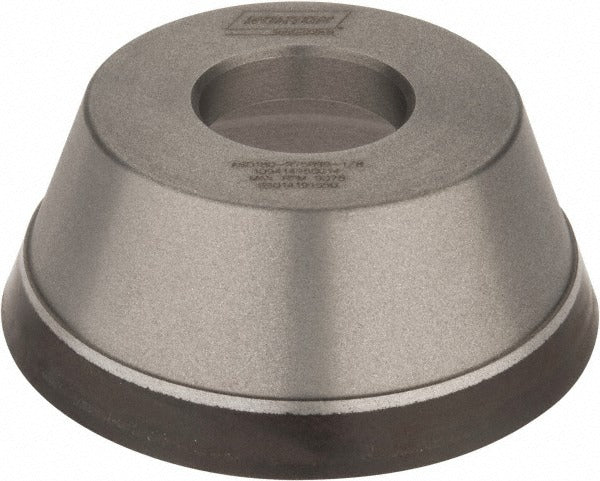

Norton 69014191650 Diamond Grinding Wheel 180 Grit

Product Description

The NORTON 69014191650 is a Type 11V9 diamond cup grinding wheel designed for precision grinding and finishing of hard materials. It features an Armored Synthetic Diamond (ASD) abrasive at 180 grit, placing it in the Very Fine grade range for controlled material removal and surface refinement. The resinoid bond holds the superabrasive layer to a 70-degree face angle, delivering consistent contact geometry during wet or dry operation. At 3-3/4 inches in diameter with a 1-1/4 inch arbor hole, this wheel mounts on standard bench grinders, tool and cutter grinders, and compatible surface grinding equipment. It is typically installed and operated by tool room machinists, carbide tooling specialists, and precision grinding technicians.

This wheel is suited for tool and cutter grinding applications requiring a fine surface finish on carbide, ceramite, and other superhard substrates. The 3/8 inch face width and 1/8 inch superabrasive depth make it appropriate for sharpening cutting tools, reconditioning end mills, and finish-grinding hard workpieces where tight dimensional tolerances are required. Both wet and dry operation are supported, allowing use with coolant for extended wheel life or dry for quick setup in tool room environments.

Key Features

• Armored Synthetic Diamond (ASD) abrasive at 75 concentration for consistent cutting action
• 180 grit, Very Fine grade for refined surface finish on carbide and hard materials
• Resinoid bond construction provides controlled compliance and vibration damping
• Type 11V9 form with 70-degree face angle for accurate tool and cutter grinding contact
• Supports both wet and dry operation for flexible shop use
• Specification designation ASD180-R75B99-1/8 for direct OEM and replacement cross-reference

Compatibility

Designed as an OEM-style replacement or upgrade wheel for tool and cutter grinders and bench grinding equipment accepting a 3-3/4 inch diameter, 1-1/4 inch arbor hole, Type 11V9 superabrasive wheel.

Installation Notes

Installation should be performed by a qualified toolroom machinist or grinding equipment technician. Disconnect and lock out power to the grinder before mounting or removing any wheel. Verify spindle speed rating against the wheel maximum operating speed before use, and ensure the arbor flange and blotter are properly seated before tightening. When operating with coolant, confirm coolant compatibility with resinoid bond wheels per the manufacturer guidance for the grinding system in use.
