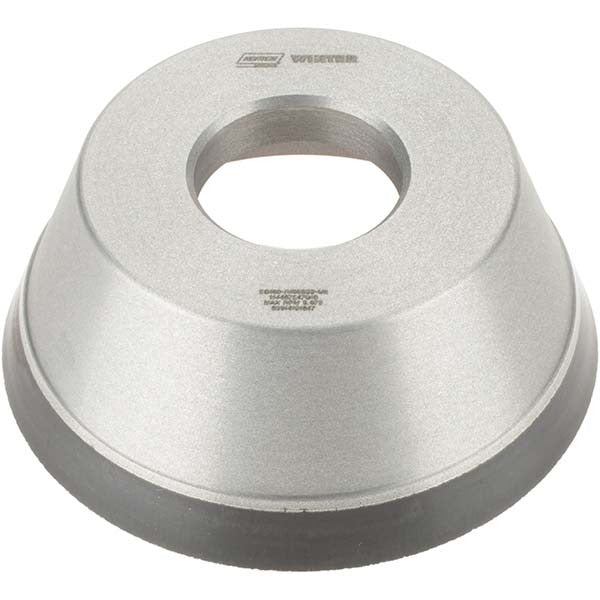

Norton 69014191647 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191647 is a Type 11V9 diamond grinding wheel designed for precision grinding of carbide, ceramic, and other hard materials. At 3-3/4 inches in diameter with a 180-grit, Very Fine grade, it delivers fine material removal and surface refinement in tool room and production grinding applications. The wheel uses synthetic diamond abrasive bonded in a resinoid bond matrix and carries a 100 concentration rating, meaning a dense abrasive layer for consistent, controlled cutting action. At 0.61 pounds, it is compact and well-suited for bench grinder or pedestal grinder setups. Wet or dry operation is supported.

This wheel is used in tool and cutter grinding, drill re-sharpening, and profile grinding of hard substrates such as tungsten carbide, ceramics, and hardened tool steels. The Type 11V9 cup configuration with a 70-degree face angle makes it appropriate for face grinding and clearance angle work on cutting tools. It is typically installed and operated by machinists, toolroom grinders, or skilled maintenance trades in industrial and shop environments.

Key Features

• Synthetic diamond abrasive for grinding carbide, ceramics, and hard tool materials
• Type 11V9 cup wheel geometry with 70-degree face angle for clearance and face grinding
• 180 grit, Very Fine grade for fine stock removal and surface finishing
• Resinoid bond with 100 concentration for consistent abrasive exposure
• Supports both wet and dry operation
• Compact 3-3/4 inch diameter suited for bench and pedestal grinding machines

Compatibility

Designed as an OEM-style replacement or direct-use diamond cup wheel for bench grinders and tool and cutter grinders accepting a 1-1/4 inch arbor hole and a 3-3/4 inch diameter Type 11V9 wheel.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before each use and never operate a damaged wheel. Follow ANSI B11.9 and machine manufacturer guidelines for maximum operating speed and proper wheel mounting procedures.
