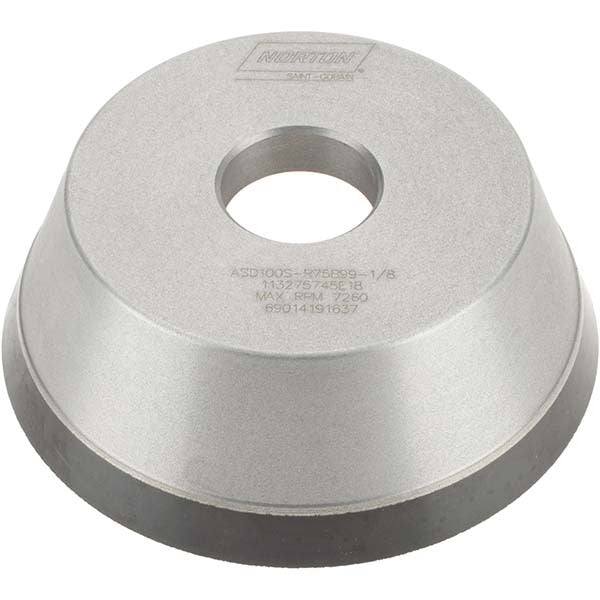

Norton 69014191637 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191637 is a Type 11V9 superabrasive grinding wheel engineered for precision grinding of hard and brittle materials. Built with Armored Synthetic Diamond (ASD) abrasive at 100 grit (Fine grade), it delivers consistent stock removal with a controlled surface finish. The resinoid bond holds the abrasive securely across both wet and dry operating conditions. At 5 inches in diameter and 1-3/4 inches overall thickness, this wheel suits bench and pedestal grinders used by toolroom machinists, carbide tool grinders, and maintenance technicians working with hardened tooling, ceramic components, or tungsten carbide.

This wheel is suited for precision tool and cutter grinding applications in both shop and production environments. The Type 11V9 flared-cup form and 70-degree face angle make it effective for clearance grinding on cutting tools, drills, and end mills. The 1/4-inch hub recess and 1-1/4-inch hole size fit standard grinding machine spindles. Both wet and dry operation are supported, giving the installer flexibility based on available coolant systems.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding hardened materials and carbide tooling
• Type 11V9 flared-cup form with 70-degree face angle for clearance and relief grinding
• Resinoid bond provides controlled cut rate and good form retention
• 100 grit Fine grade for finish stock removal with smooth surface results
• Rated for wet and dry operation — compatible with coolant-assisted setups
• ASD100S-R75B99-1/8 specification with 75 concentration superabrasive layer, 1/8-inch superabrasive depth

Compatibility

Designed for use on tool and cutter grinders, bench grinders, and pedestal grinders accepting a 1-1/4-inch hole with a 5-inch diameter Type 11V9 wheel.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with superabrasive wheel mounting procedures. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips before each use and never exceed the rated operating speed marked on the wheel. Follow ANSI B11.9 and applicable OSHA standards for abrasive wheel guarding and safe operation.
