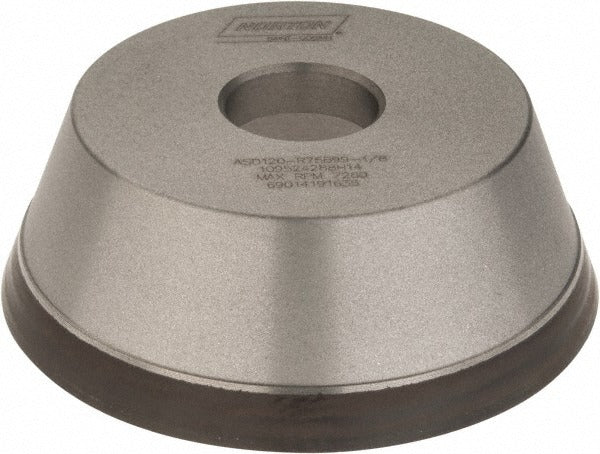

Norton 69014191636 Type 11V9 Diamond Grinding Wheel

Product Description

The NORTON 69014191636 is a Type 11V9 diamond grinding wheel designed for precision grinding of hard, wear-resistant materials. At 5 inches in diameter with a 120-grit Fine grade, it uses Armored Synthetic Diamond (ASD) abrasive in a resinoid bond matrix. The ASD120-R75B99 specification indicates a 75 concentration and 1/8 inch superabrasive depth, delivering consistent stock removal with controlled surface finish. Suitable for both wet and dry operation, this wheel is a go-to tool for tool and cutter grinders, surface grinders, and carbide toolroom applications. Licensed trades and toolroom machinists are the primary installers and operators.

This wheel is intended for toolroom and industrial grinding applications where tight tolerances and fine finishes are required on carbide, ceramics, and other superhard workpiece materials. The Type 11V9 flaring cup profile with a 70-degree face angle concentrates the abrasive contact zone, making it effective for grinding tool faces and relief angles on cutting tools. Its compatibility with both wet coolant and dry grinding setups gives operators flexibility across a range of machine configurations.

Key Features

• Armored Synthetic Diamond (ASD) abrasive for grinding carbide and superhard materials
• 120-grit Fine grade for controlled stock removal and refined surface finish
• Resinoid bond provides good shock resistance and free-cutting action
• Type 11V9 flaring cup profile with 70-degree face angle for tool relief and face grinding
• 1/8 inch superabrasive depth and 75 concentration for consistent performance throughout wheel life
• Rated for wet or dry operation, compatible with standard coolant systems

Compatibility

Designed as an OEM-style replacement and standard toolroom wheel for tool and cutter grinders accepting a Type 11V9 cup wheel with a 1-1/4 inch bore and 5 inch diameter.

Installation Notes

Grinding wheels must be mounted and dressed only by qualified operators familiar with ANSI B11.9 and applicable safety standards for abrasive wheel machinery. Before mounting, inspect the wheel for cracks or chips and perform a ring test. Power down and lock out the grinder before changing wheels. Never exceed the maximum operating speed marked on the wheel or machine.
