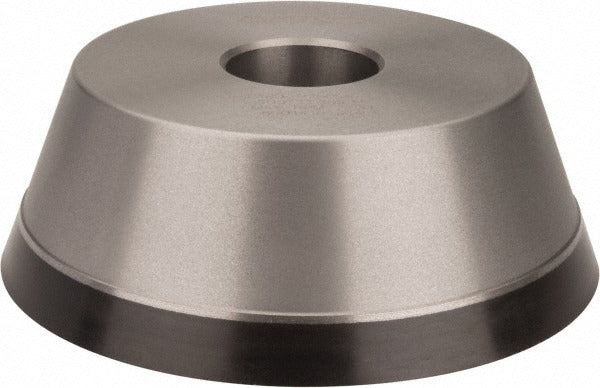

Norton 69014191634 Type 11V9 Diamond Grinding Wheel 180 Grit

Product Description

The NORTON 69014191634 is a Type 11V9 resinoid-bond diamond grinding wheel designed for precision grinding of hard and superhard materials. Built with Armored Synthetic Diamond (ASD) abrasive at 180 grit, this wheel delivers a very fine finish suitable for carbide tooling, ceramics, and similar hard substrates. The wheel measures 5 inches in diameter with an overall thickness of 1.75 inches and accepts a 1.25-inch arbor hole. It supports both wet and dry operation, giving technicians flexibility depending on the application and shop setup. The specification code ASD180-R75B99-1/8 identifies the abrasive type, concentration, bond grade, and diamond depth precisely for sourcing and replacement purposes.

This wheel is suited for tool and cutter grinding operations in machine shops, carbide tool reconditioning, and precision grinding of hard ceramics or glass. The 70-degree face angle and 7/16-inch face width are configured for cup-style grinding contact typical of bench grinders and surface grinding setups running Type 11V9 geometry. Wet or dry coolant compatibility makes it adaptable to both production and maintenance grinding environments. It is typically installed and operated by toolroom machinists, grinding specialists, and skilled trade professionals working with superabrasive tooling equipment.

Key Features

• Armored Synthetic Diamond (ASD) abrasive at 180 grit for very fine material removal on hard substrates
• Type 11V9 cup wheel geometry with a 70-degree face angle for controlled contact area
• Resinoid bond construction supports consistent cut rate and surface finish
• Compatible with wet and dry operation for flexible shop use
• Diamond depth of 0.125 inches with superabrasive concentration rating of 75
• Specification code ASD180-R75B99-1/8 for exact cross-reference and procurement

Compatibility

Designed as an OEM-style replacement or direct-fit superabrasive grinding wheel for bench grinders and tool and cutter grinders accepting a Type 11V9 wheel with a 5-inch diameter and 1.25-inch arbor hole.

Installation Notes

Installation should be performed by a qualified toolroom machinist or grinding equipment technician. Always power down and lockout the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before installation and follow ANSI B7.1 safety standards for abrasive wheel mounting, including proper flange fit and guard clearance. Do not exceed the maximum operating speed rated for the wheel.
