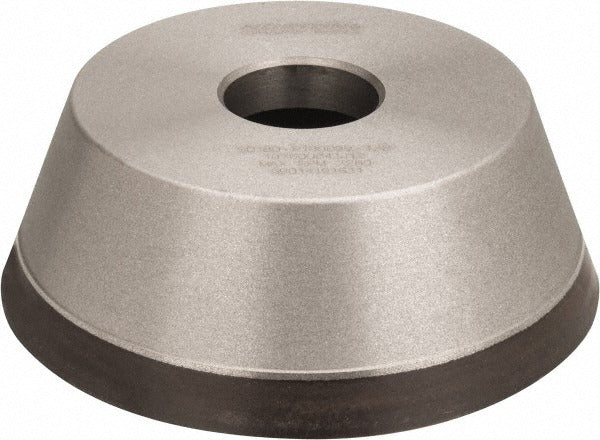

Norton 69014191631 Type 11V9 Diamond Grinding Wheel 180 Grit

Product Description

The NORTON 69014191631 is a Type 11V9 diamond grinding wheel designed for precision grinding of hard and superhard materials. Built with a synthetic diamond abrasive at 180 grit, this wheel delivers a very fine finish suitable for controlled stock removal and surface refinishing. The resinoid bond provides shock-absorbing characteristics that help maintain surface integrity during aggressive grinding passes. At 5 inches in diameter with a 1-3/4 inch overall thickness, this wheel is sized for bench and tool grinding equipment used by machinists, carbide tool sharpeners, and skilled tradespeople working with ceramics, carbide, or hardened tool steel.

This wheel is appropriate for both wet and dry grinding operations, giving the operator flexibility depending on the workpiece material and equipment setup. The 70-degree face angle and 7/16 inch face width concentrate the cutting action at the working edge, making this wheel well suited for grinding carbide tooling, ceramic components, and similar hard substrates. The 1/8 inch superabrasive depth ensures a usable diamond layer that resists rapid wear during sustained grinding cycles. Typical applications include toolroom work and maintenance grinding where fine surface finish and dimensional control are required.

Key Features

• Synthetic diamond abrasive at 180 grit for very fine material removal on hard substrates
• Type 11V9 profile with 70-degree face angle for concentrated edge contact
• Resinoid bond construction provides cushioned cut and reduces surface damage risk
• Compatible with both wet and dry grinding operation modes
• 1/8 inch superabrasive depth for extended service life
• Superabrasive concentration of 100 for consistent cutting performance across the wheel face

Compatibility

Designed as an OEM-style replacement or direct-use grinding wheel for bench grinders and tool grinding machines accepting a 5 inch diameter, 1-1/4 inch arbor hole, Type 11V9 wheel configuration.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician following applicable ANSI B7.1 safety standards for abrasive wheel mounting. Always power down and lock out the grinding machine before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and never exceed the maximum operating speed marked on the wheel or its packaging. Ring-test the wheel before use and use the correct flanges and blotters as specified by the equipment manufacturer.
