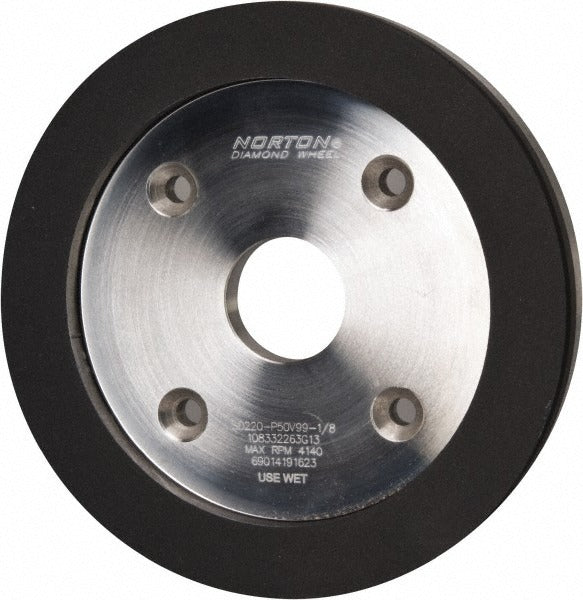

Norton 69014191623 Diamond Grinding Wheel 6 in 220 Grit

Product Description

The NORTON 69014191623 is a Type 6A2C diamond cup grinding wheel designed for precision grinding of hard and superhard materials. Built with synthetic diamond abrasive and a vitrified bond, this wheel delivers consistent stock removal and surface finishing on carbide, ceramics, and other difficult-to-grind workpiece materials. At 6 inches in diameter with a 220 grit rating and Very Fine grade, it is suited for finishing passes where tight surface tolerances are required. The wheel weighs 1.65 pounds and supports both wet and dry operation, making it adaptable to a range of bench and surface grinding setups. Installation and use are performed by tool and die professionals, machinists, and grinding technicians.

This wheel is used in tool room and production grinding applications involving carbide tooling, ceramic components, and similar superhard materials. The Type 6A2C form factor fits bench grinders and surface grinders equipped with a 1-1/4 inch arbor bore. The 1/16 inch superabrasive depth and 3/4 inch face width make it well suited for finishing and light material removal rather than aggressive rough grinding. It is appropriate for both light production and precision rework environments where surface finish quality is the primary objective.

Key Features

• Synthetic diamond (SD) abrasive for grinding carbide, ceramics, and superhard materials
• Vitrified bond provides rigidity, free cutting action, and consistent form retention
• 220 grit Very Fine grade for finishing passes and tight surface finish requirements
• Supports wet and dry operation for flexibility across grinding setups
• 1/16 inch superabrasive depth rated at 50 concentration for controlled, efficient cutting
• SD220-P50V99 specification designation for direct cross-reference and reordering

Compatibility

Designed for use on bench grinders and surface grinders with a 1-1/4 inch arbor bore accepting a Type 6A2C wheel form. Verify spindle speed rating and arbor compatibility before mounting.

Installation Notes

Grinding wheel installation should be performed by a qualified machinist or grinding technician following ANSI B7.1 safety standards for abrasive wheel use. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or chips prior to installation and perform a ring test where applicable. Always use the correct flange hardware and never exceed the maximum operating speed marked on the wheel.
