Norton 6890-689 Narrow Frame Support Bracket

Product Description

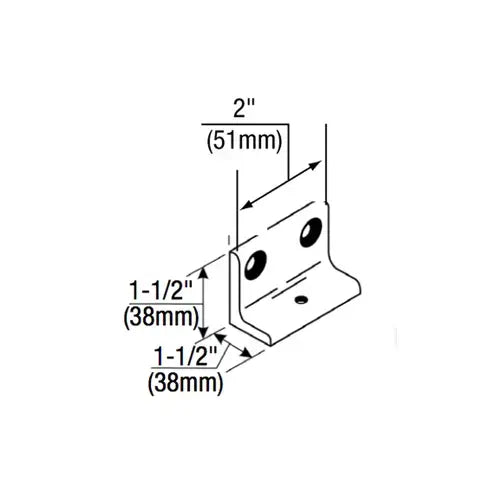

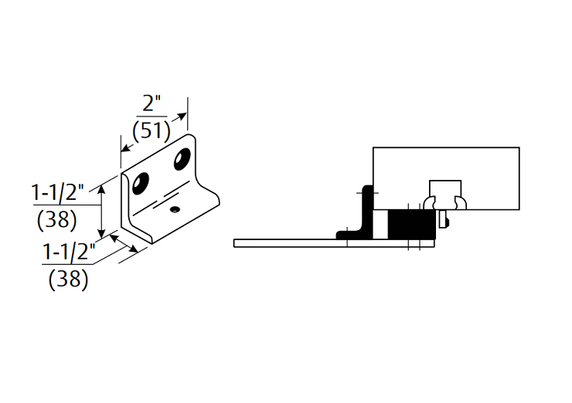

The Norton 6890-689 narrow frame support bracket is designed for use where the frame has a blade stop and the soffit plate must be mounted on the frame rabbet. It is used in combination with the #6891 spacer block on blade stop frames. The bracket provides extra support and needed clearance of the blade stop. It measures 1-1/2 x 2 x 1-1/2 inches.

• For use where the frame has a blade stop
• Provides extra support and clearance
• Used with 7570, 7500, 1600, 78-B/F, and 8000 series door closers

Product Highlights

The Norton narrow frame support bracket is for use where the frame is narrow and provides support for door closers.

Product Information

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 6890-689

Technical Specifications

• Color: Aluminum Painted
• Color Code: 689/US28
• Package Qty: 1
• Finish: Aluminum Painted
• Function: Bracket
• Finish Description: Aluminum Painted
• Product Type: Door Control Part/Accessory
• Product Height: 1-1/2 Inch
• Product Length: 2 Inch
• Product Width: 1-1/2 Inch
• ADA Compliant: No
• Finish Family: Aluminum
• Function Family: Part/Component
• Features: For Use Where the Frame Has a Blade Stop and the Soffit Plate Must Be Mounted on the Frame Rabbet
• For Use With: 7570 Series Security Door Closer; 7500 Series Institutional Door Closer; 1600 Series Aluminum Storefront Door Closer; 78-B/F Series Traditional Door Closers; 8000 Series Architectural Door Closer
• Series: Norton Drop Plates & Brackets
• Manufacturer Parent: Assa Abloy
• Sub-Series: PA_Door_Control_Parts_norton_12
• Alternate Part Number-1: 246483
• Brand: Norton
• Type: Brackets
• Model: 6890
• MPN: 6890
